U 25 Universal Coil Formers With h- or z-Solder Pins
U 25 Universal Coil Formers
U 25 universal coil formers with h- or z-solder pins for radial winding or space-saving PCB installation.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Pin Type
h-solder pins or z-solder pins
Materials
PA66 A RV250 natural
RTI
+100°C
Pin System
Tin bronze, tin-plated solder pins
Soldering Resistance
+350°C up to 2 seconds
Application
Radial winding of thin wires and compact PCB installation
Benefit
h-pins support radial winding of thin wires and strands, while z-pins support space-saving PCB installation with additional fixing holes and wide spacer ribs
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

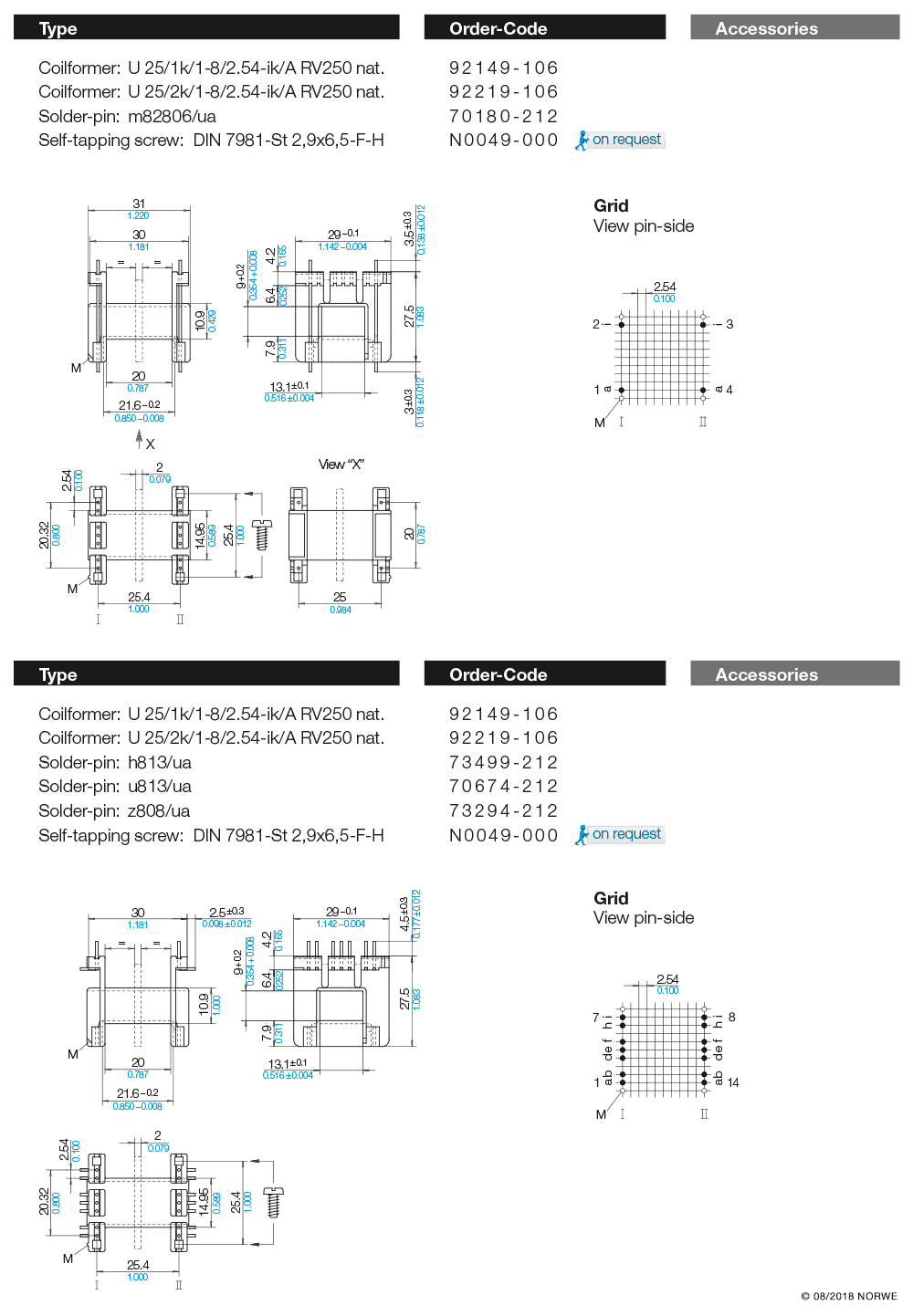

U 25/1k/1-8/2,54-ik/A RV250 nat.Order Code
92149-106Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
U 25/2k/1-8/2,54-ik/A RV250 nat.Order Code
92219-106Status
AvailableResources
2 downloads available
Article-level resource view
