Material Options
PPS torA504, PA46 TE 250 F6, PA66 A3X2G10, PA66 eg7 and special materials depending on variant
Surface-Mount Device
SMD
Surface-Mount Transformer Components
Surface-mount coil formers, carrier plates, potting housings and assembly components for compact automated PCB assembly and reflow soldering processes.
Product Family
Family Overview.
SMD is part of NORWE's product system for demanding electrical and electronic applications. The family combines proven core geometry compatibility with reliable manufacturing, material expertise and application-specific configuration options.
SMD TransformersCompact PCB AssembliesReflow SolderingAutomated Pick And PlaceMiniaturized Electronics
Family Technical Data
Technical Foundation.
The product family is defined by material options, thermal behavior, insulation requirements and manufacturing features that support reliable long-term performance.
RTI Performance
PPS torA504 RTI +130°C, PA66 A3X2G10 RTI +115°C, PA66 eg7 RTI +120°C and PA46 TE 250 F6 RTI depending on V-0 thickness rating
Soldering Process
Many SMD variants are designed for reflow soldering processes
Pin Materials
Tin bronze, tin-plated solder pins depending on variant and connection concept
Design System
EE-SMD, EFD-SMD, ER-SMD, EP/EPX-SMD, RM-SMD, PC-SMD, TR-SMD, GP-SMD, ring-core potting housings, VLA-SMD housings, Pick and Place caps, spring housings and SB/FB brackets
Special Materials
Radiation cross-linked thermoplastic materials are recommended for high-temperature soldering processes and available on request
Product Groups
Select A Product Group.
Choose a product group to access verified NORWE types, order codes, technical product visuals and article-specific request actions.
01

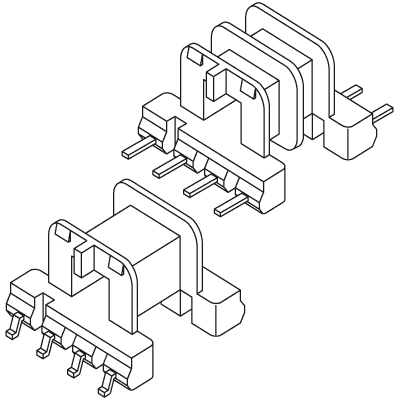

EE-SMD Coil Formers fm
SMD Product Group
Legacy-conform SMD product group EE-SMD Coil Formers fm.
Legacy Group: 007/A01Legacy Source: https://www.norwe.eu/products/de/007/A01
02

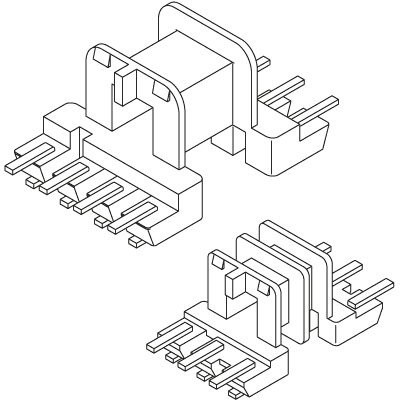

EE-SMD Coil Formers fu
SMD Product Group
Legacy-conform SMD product group EE-SMD Coil Formers fu.
Legacy Group: 007/B01Legacy Source: https://www.norwe.eu/products/de/007/B01
03

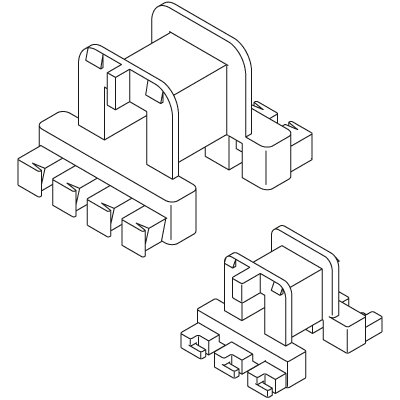

EE-SMD Coil Formers LP
SMD Product Group
Legacy-conform SMD product group EE-SMD Coil Formers LP.
Legacy Group: 007/C01Legacy Source: https://www.norwe.eu/products/de/007/C01
04

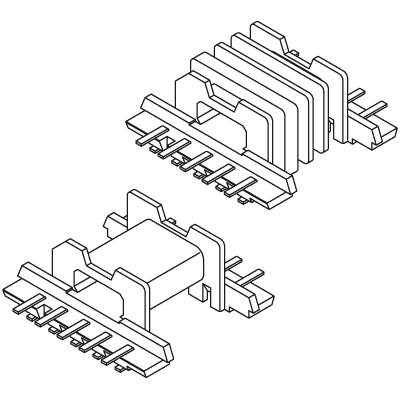

EFD-SMD Coil Formers fu
SMD Product Group
Legacy-conform SMD product group EFD-SMD Coil Formers fu.
Legacy Group: 007/D01Legacy Source: https://www.norwe.eu/products/de/007/D01
05

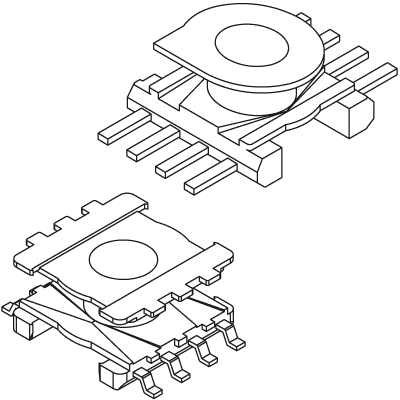

ER-SMD Coil Formers fm
SMD Product Group
Legacy-conform SMD product group ER-SMD Coil Formers fm.
Legacy Group: 007/E01Legacy Source: https://www.norwe.eu/products/de/007/E01
06

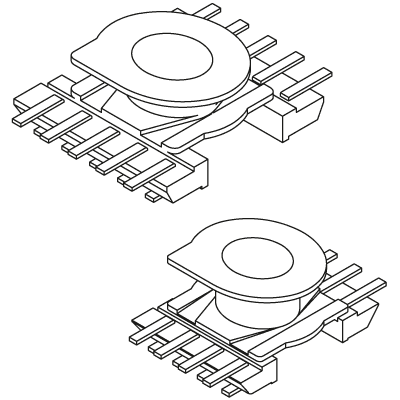

ER-SMD Coil Formers fu
SMD Product Group
Legacy-conform SMD product group ER-SMD Coil Formers fu.
Legacy Group: 007/F01Legacy Source: https://www.norwe.eu/products/de/007/F01
07

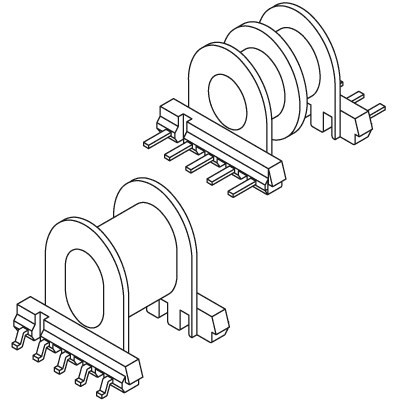

EP/EPX-SMD Coil Formers fm
SMD Product Group
Legacy-conform SMD product group EP/EPX-SMD Coil Formers fm.
Legacy Group: 007/G01Legacy Source: https://www.norwe.eu/products/de/007/G01
08

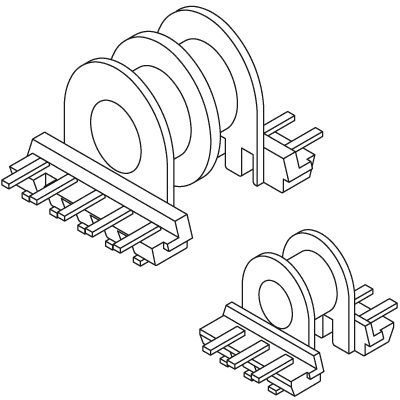

EP-SMD Coil Formers fu
SMD Product Group
Legacy-conform SMD product group EP-SMD Coil Formers fu.
Legacy Group: 007/H01Legacy Source: https://www.norwe.eu/products/de/007/H01
09

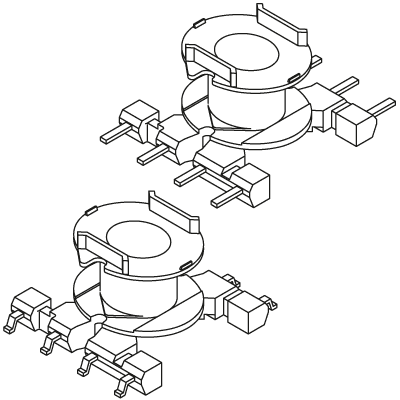

RM-SMD Coil Formers fm
SMD Product Group
Legacy-conform SMD product group RM-SMD Coil Formers fm.
Legacy Group: 007/I01Legacy Source: https://www.norwe.eu/products/de/007/I01
10

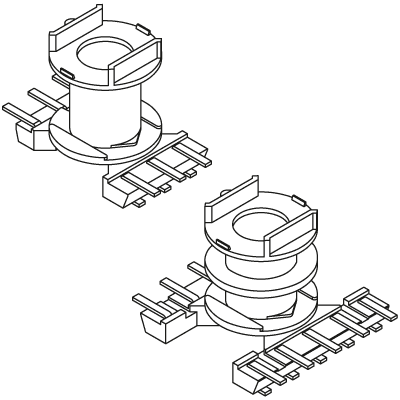

RM-SMD Coil Formers fu
SMD Product Group
Legacy-conform SMD product group RM-SMD Coil Formers fu.
Legacy Group: 007/J01Legacy Source: https://www.norwe.eu/products/de/007/J01
11

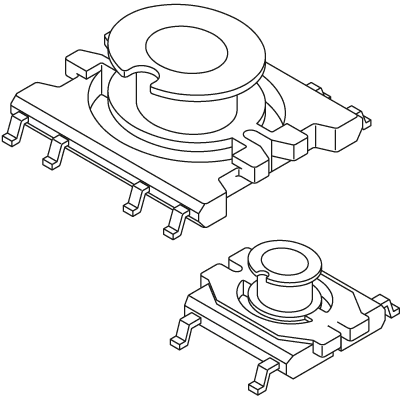

PC-SMD Coil Formers fm
SMD Product Group
Legacy-conform SMD product group PC-SMD Coil Formers fm.
Legacy Group: 007/K01Legacy Source: https://www.norwe.eu/products/de/007/K01
12

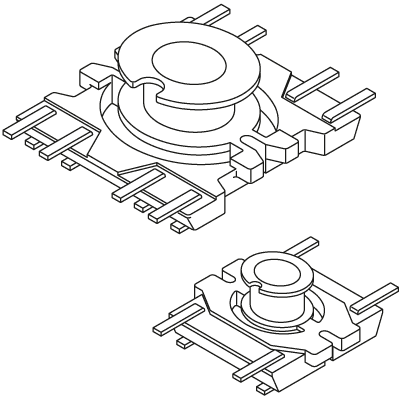

PC-SMD Coil Formers fu
SMD Product Group
Legacy-conform SMD product group PC-SMD Coil Formers fu.
Legacy Group: 007/L01Legacy Source: https://www.norwe.eu/products/de/007/L01
13

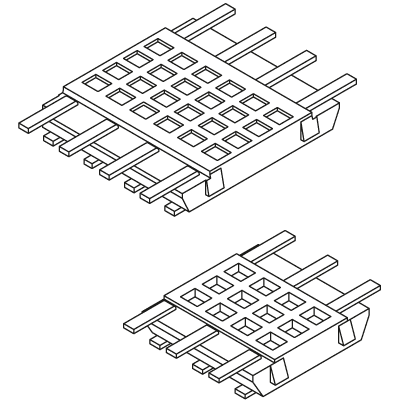

TR-SMD Carrier Plates fm
SMD Product Group
Legacy-conform SMD product group TR-SMD Carrier Plates fm.
Legacy Group: 007/M01Legacy Source: https://www.norwe.eu/products/de/007/M01
14
TR-SMD Carrier Plates fu
SMD Product Group
Legacy-conform SMD product group TR-SMD Carrier Plates fu.
Legacy Group: 007/N01Legacy Source: https://www.norwe.eu/products/de/007/N01
15

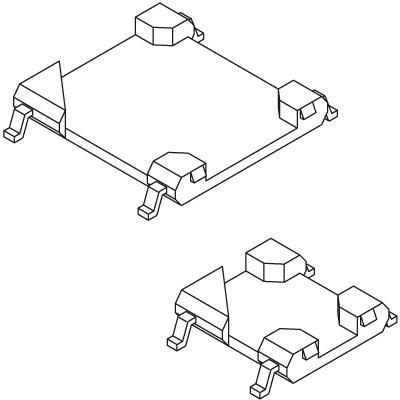

GP-SMD Base Plates fm
SMD Product Group
Legacy-conform SMD product group GP-SMD Base Plates fm.
Legacy Group: 007/O01Legacy Source: https://www.norwe.eu/products/de/007/O01
16

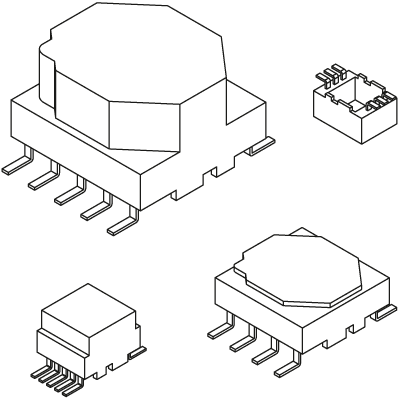

H-RG-SMD Potting Boxes fw
SMD Product Group
Legacy-conform SMD product group H-RG-SMD Potting Boxes fw.
Legacy Group: 007/P01Legacy Source: https://www.norwe.eu/products/de/007/P01
17

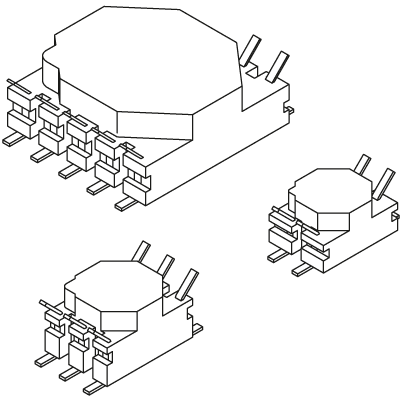

H-RG-SMD Potting Boxes ft
SMD Product Group
Legacy-conform SMD product group H-RG-SMD Potting Boxes ft.
Legacy Group: 007/Q01Legacy Source: https://www.norwe.eu/products/de/007/Q01
18

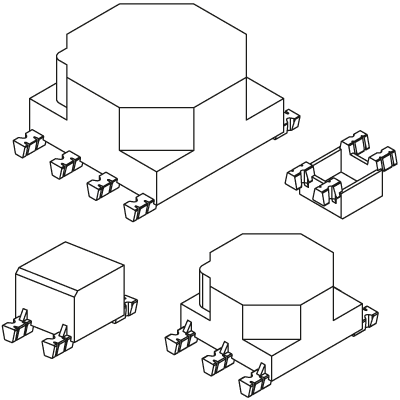

H-RG-SMD Potting Boxes LP
SMD Product Group
Legacy-conform SMD product group H-RG-SMD Potting Boxes LP.
Legacy Group: 007/R01Legacy Source: https://www.norwe.eu/products/de/007/R01
19

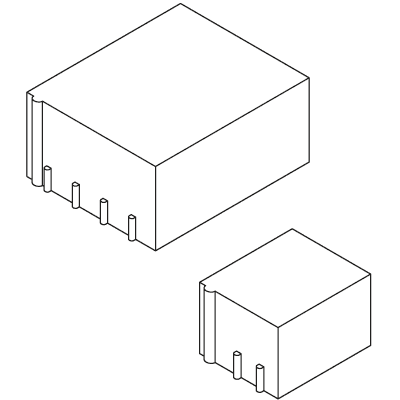

VLA-SMD Potting Housings
SMD Product Group
Legacy-conform SMD product group VLA-SMD Potting Housings.
Legacy Group: 007/S01Legacy Source: https://www.norwe.eu/products/de/007/S01
20

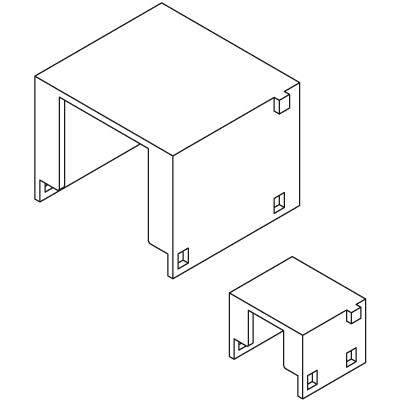

P-GP Pick and Place Caps
SMD Product Group
Legacy-conform SMD product group P-GP Pick and Place Caps.
Legacy Group: 007/T01Legacy Source: https://www.norwe.eu/products/de/007/T01
21

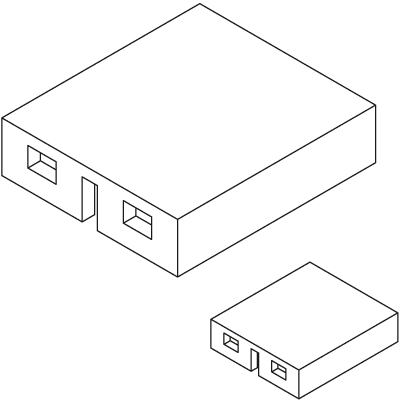

P-EE Pick and Place Caps
SMD Product Group
Legacy-conform SMD product group P-EE Pick and Place Caps.
Legacy Group: 007/U01Legacy Source: https://www.norwe.eu/products/de/007/U01
22

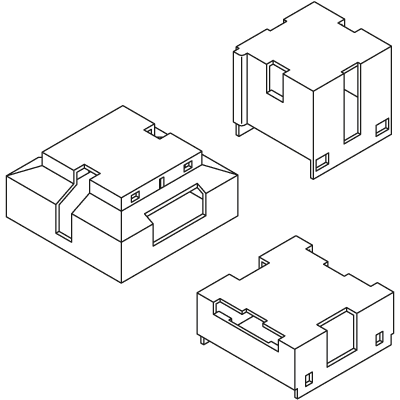

SMD Spring Housings
SMD Product Group
Legacy-conform SMD product group SMD Spring Housings.
Legacy Group: 007/V01Legacy Source: https://www.norwe.eu/products/de/007/V01
23
SB-SMD / FB-SMD Brackets
SMD Product Group
Legacy-conform SMD product group SB-SMD / FB-SMD Brackets.
Legacy Group: 007/W01Legacy Source: https://www.norwe.eu/products/de/007/W01
Advantages
Product Advantages.
Broad SMD product system for multiple ferrite core geometries
Reflow-compatible high-performance materials
Gull-wing, U-shaped and low-profile contact concepts
Pick and Place caps and spring housings for automated assembly
Special materials and radiation cross-linked versions available on request
Requirements
Technical Requirements.
SMD Assembly
Reflow Soldering
Compact Design
Automated Placement
High Thermal Processing Stability
Engineering Features
Designed For Reliable Manufacturing.
Every product detail supports reliable winding, assembly, insulation and long-term production stability.
01
SMD series components are designed for surface-mounted electronic miniaturized assemblies
02
PPS torA504 supports reflow-compatible SMD coil former and housing concepts
03
Radiation cross-linked thermoplastics are recommended for high-temperature soldering processes
04
Gull-wing terminals support surface-mount contact concepts
05
U-shaped solder pins separate winding and soldering sides to protect the later PCB contact surface
06
Pick and Place caps and spring housings support automated placement and assembly
07
Spring housings keep coil formers and ferrite core halves together while allowing additional adhesive connections
08
Modular tooling concepts support fast customer-specific adaptations
Materials
Engineered Materials.
Material selection supports electrical insulation, thermal stability and long-term reliability in demanding industrial applications.
PPS torA504 / RTI +130°CPA46 TE 250 F6 / RTI V-0 0.35 +65°C / V-0 0.70 +140°CPA66 A3X2G10 / RTI +115°CPA66 eg7 / RTI +120°CRadiation cross-linked materials on request
Material access
Standard materials, UL data and application-specific support.
Review NORWE standard plastic materials and UL-related data, or discuss alternative materials for specific thermal, electrical, processing or compliance requirements.
Technical Capabilities
Verified Technical Performance.
The product family is engineered around material performance, soldering resistance, connection technology and reliable processing.
01
PPS torA504 with RTI +130°C for many SMD coil former, housing and cap variants
02
PA46 TE 250 F6 for ER-SMD fu variants with RTI depending on V-0 thickness rating
03
PA66 A3X2G10 with RTI +115°C for selected RM-SMD fu variants
04
PA66 eg7 with RTI +120°C for SMD spring housings
05
Suitable for reflow soldering depending on variant and material
06
Tin bronze, tin-plated solder pins depending on variant
07
Stainless-steel SB-SMD and FB-SMD brackets for ferrite core fixation
08
Special radiation cross-linked materials and executions available on request
Downloads & Drawings
Technical Documents Without Friction.
Technical documentation is connected to the product structure at article level. Current released drawings are supplied through NORWE with the exact product context preserved for engineering and procurement workflows.
Technical Resource
Technical Data
Open the central document center for released technical and compliance documentation.
Open document center→
Technical Resource
Drawing Information
Select a product group and article to access released article-specific technical drawings directly.
Open product groups→
Technical Resource
Application Support
Clarify product suitability, material questions and production-related requirements with NORWE.
Request application support→
Technical Resource
Quote Preparation
Move from technical interest to quotation preparation with product and project context already included.
Request Quote→
Product documentation
Ordering Information
Family-specific ordering guidance for complex configurations, assembly options and order-code interpretation.
Open article ordering data →Product documentation
Supplementary Product Information
Additional technical information for this product family and its article variants.
Request current Supplementary Product Information →Downloads & Drawings
141 released drawings available directly through the articles.
Select the matching product group and article. Released drawings can then be opened directly without submitting a request.
Existing Resource Categories
SMD Ordering ExampleSMD Product InformationSMD Series InformationEE, EFD, ER, EP, EPX, RM And P(PC) Ferrite CoresPick and Place Cap InformationSMD Spring Housing InformationSB-SMD / FB-SMD Bracket InformationPlastic Material ListRadiation Cross-Linking
Technical FAQ
Frequently Asked Questions.
SMD coil formers are surface-mount winding bodies for compact transformer and magnetic component assemblies. They are designed for automated PCB assembly and reflow soldering depending on material and variant.
Depending on the variant, NORWE uses PPS torA504, PA46 TE 250 F6, PA66 A3X2G10, PA66 eg7 and special materials such as radiation cross-linked thermoplastics on request.
fm versions typically use gull-wing terminals, fu versions use U-shaped solder pins with separated winding and soldering sides, and LP versions are low-profile all-plastic versions without metal solder contacts.
U-shaped solder pins separate the winding and soldering side. This enables automatic winding and soldering without tin wetting of the later SMD contact surface.
Pick and Place caps create a defined top surface for automated placement of SMD transformer assemblies on printed circuit boards.
Radiation cross-linking helps preserve mechanical properties under short high thermal peak loads during high-temperature soldering processes and can reduce breakage risk.
