Legacy Group
007/K01
SMD Product Group
PC-SMD Coil Formers fm
SMD Product Group
Legacy-conform SMD product group PC-SMD Coil Formers fm.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Legacy Source
https://www.norwe.eu/products/de/007/K01
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type
A 4,6 x 3,1-SMD1/4f-625-/torA504Order Code
N0336-132Status
on requestResources
2 downloads available
Article-level resource view

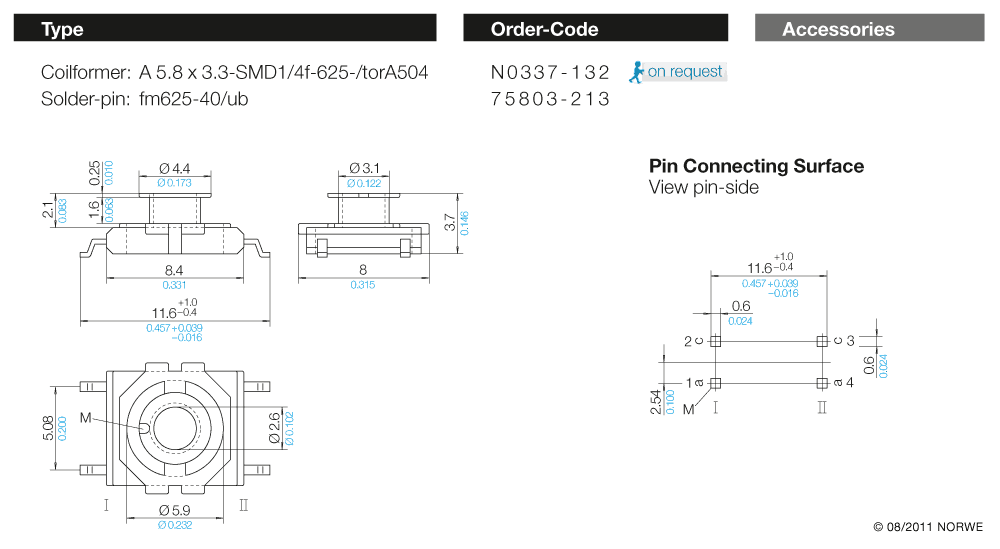

NORWE Type
A 5,8 x 3,3-SMD1/4f-625-/torA504Order Code
N0337-132Status
on requestResources
2 downloads available
Article-level resource view

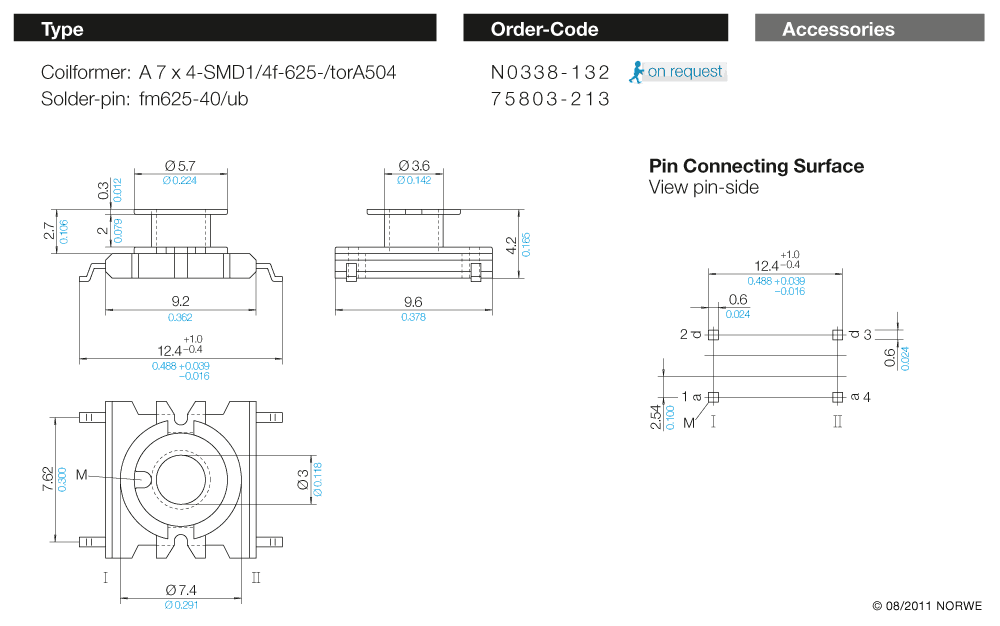

NORWE Type
A 7 x 4-SMD1/4f-625-/torA504Order Code
N0338-132Status
on requestResources
2 downloads available
Article-level resource view

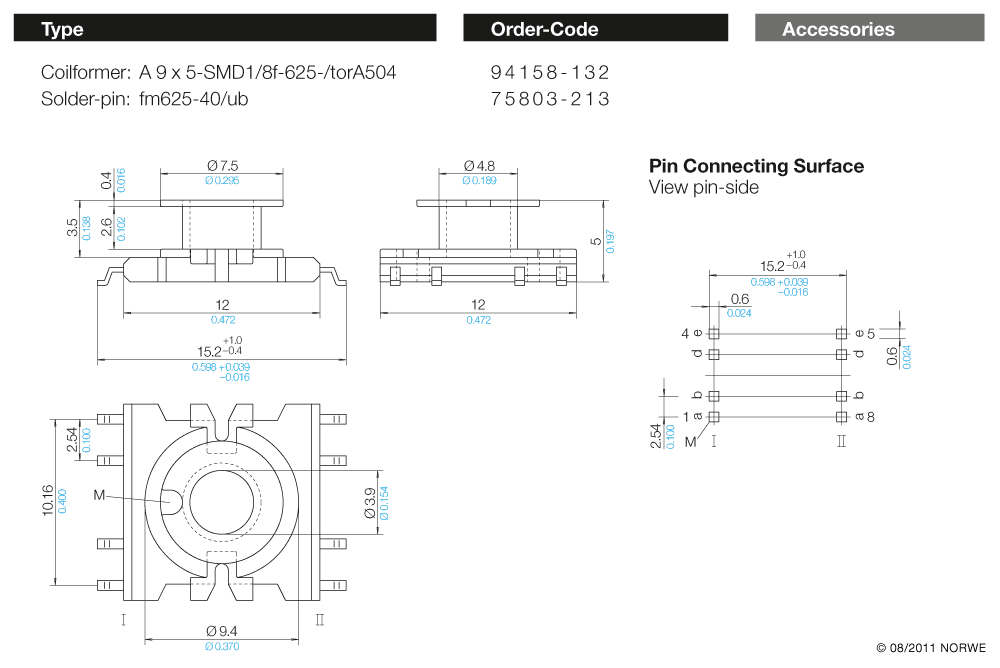

NORWE Type
A 9 x 5-SMD1/8f-625-/torA504Order Code
94158-132Status
AvailableResources
2 downloads available
Article-level resource view

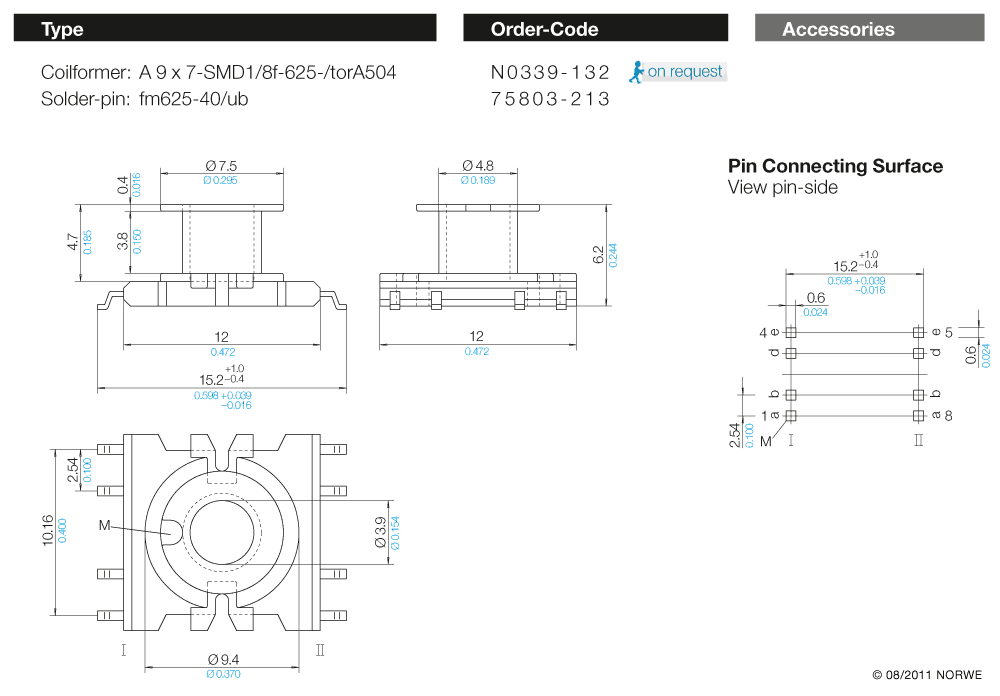

NORWE Type
A 9 x 7-SMD1/8f-625-/torA504Order Code
N0339-132Status
on requestResources
2 downloads available
Article-level resource view
Need Support With This Product Group?
Talk to NORWE about PC-SMD Coil Formers fm, article selection, drawings, samples or quotation preparation.
