Material Options
PET rtg natural, PA66 p6g, PA66 A3XG10, PBT pcg, PPS torA504 and special materials on request
Rectangular Modular
RM
Compact Shielded Applications
Compact coil formers for pulse transformers, storage chokes, filters and DC/DC converter applications.
Product Family
Family Overview.
RM is part of NORWE's product system for demanding electrical and electronic applications. The family combines proven core geometry compatibility with reliable manufacturing, material expertise and application-specific configuration options.
Pulse TransformersStorage ChokesFiltersDC/DC ConvertersCompact Power Electronics
Family Technical Data
Technical Foundation.
The product family is defined by material options, thermal behavior, insulation requirements and manufacturing features that support reliable long-term performance.
RTI Performance
Typical RTI values from +115°C to +155°C depending on selected material and variant
Soldering Resistance
Maximum soldering temperature up to +350°C for 2 seconds for most variants; RM power transformer 45° PPS variant up to +300°C for 2 seconds
Pin & Blade Materials
Tin bronze, tin-plated solder pins and brass, tin-plated solder blades depending on configuration
Design System
RM standard height, RM-LP low profile, linear pin arrangements, linear solder blade arrangements and 45° power transformer versions
Special Materials
Radiation cross-linked thermoplastics are recommended for high-temperature soldering processes and are available on request
Product Groups
Select A Product Group.
Choose a product group to access verified NORWE types, order codes, technical product visuals and article-specific request actions.
01

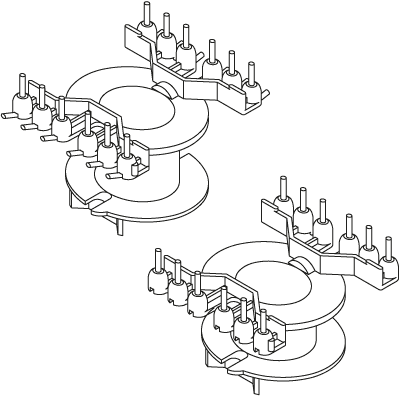

RM Standard Height / RM-LP Low Profile With Linear Solder Pins
RM Coil Formers With Solder Pins
RM standard-height and RM-LP low-profile coil formers with linearly arranged solder pins for compact transformer, choke and converter applications.
Series: RM Standard / RM-LP Low ProfileConnection: Linearly arranged solder pinsMaterials: PET rtg natural, PA66 p6g
02

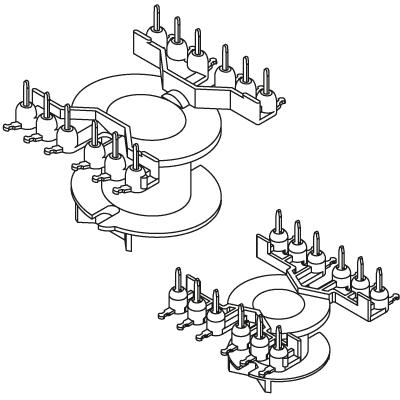

RM Standard Height / RM-LP Low Profile With Linear Solder Blades
RM Coil Formers With Solder Blades
RM standard-height and RM-LP low-profile coil formers with linearly arranged solder blades for radial winding and stable assembly concepts.
Series: RM Standard / RM-LP Low ProfileConnection: Linearly arranged solder bladesMaterials: PET rtg natural, PA66 p6g, PA66 A3XG10
03

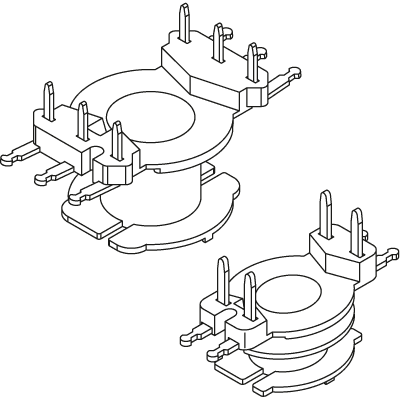

RM Standard Height 45° With Linear Solder Blades
RM 45° Coil Formers
RM 45° coil formers with linearly arranged solder blades for demanding winding concepts and compact transformer assemblies.
Series: RM Standard Height 45°Connection: Up to 3 linearly arranged solder blades per sideMaterials: PBT pcg
04

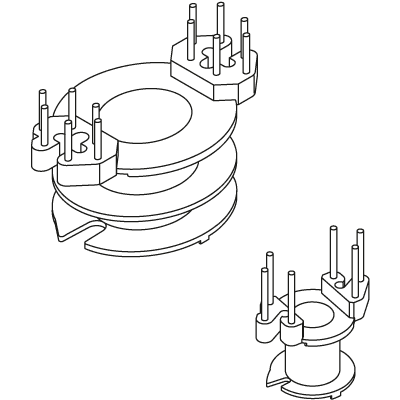

RM Power Transformer 45°
RM Power Transformer Coil Formers
RM 45° power transformer coil formers for demanding power transfer applications with axial winding connection concepts.
Series: RM Power Transformer 45°Connection: Axially windable solder pinsMaterials: PPS torA504
05

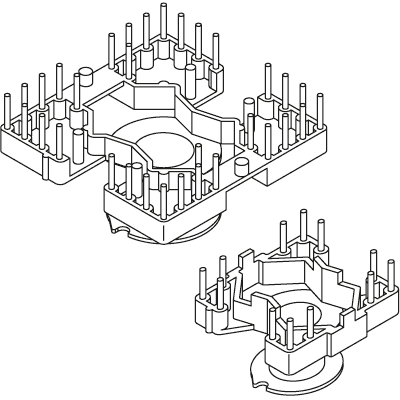

RM Power Transformer 45° Special Design
RM Special Design Coil Formers
Special RM 45° power transformer coil formers for bifilar winding concepts and automated winding and soldering processes.
Series: RM Power Transformer 45° Special DesignConnection: Solder pin arrangement on the lower flangeMaterials: PA66 p6g
Advantages
Product Advantages.
Nearly closed core geometry for compact magnetic assemblies
Standard and RM-LP low-profile versions available
Linear pin and solder blade arrangements
45° variants for demanding power transformer applications
Special designs for bifilar windings and automated production
Requirements
Technical Requirements.
Compact Design
Low Emission
Signal Integrity
High-Temperature Processing
Automated Winding
Engineering Features
Designed For Reliable Manufacturing.
Every product detail supports reliable winding, assembly, insulation and long-term production stability.
01
Nearly closed RM geometry supports compact magnetic assemblies
02
RM standard height and RM-LP low-profile versions support different installation heights
03
h-pin versions allow radial and strain-relieved winding of thin wires and strands
04
z-pin versions allow conventional winding and space-saving PCB installation
05
Tolerance compensation TA can replace the usual spring insulating washer
06
Special RM designs support bifilar windings and fully automatic winding and soldering
Materials
Engineered Materials.
Material selection supports electrical insulation, thermal stability and long-term reliability in demanding industrial applications.
PET rtg natural / RTI +155°CPA66 p6g / RTI +125°CPA66 A3XG10 / RTI +115°CPBT pcg / RTI +130°CPPS torA504 / RTI +130°CRadiation cross-linked materials on request
Material access
Standard materials, UL data and application-specific support.
Review NORWE standard plastic materials and UL-related data, or discuss alternative materials for specific thermal, electrical, processing or compliance requirements.
Technical Capabilities
Verified Technical Performance.
The product family is engineered around material performance, soldering resistance, connection technology and reliable processing.
01
PET rtg natural with RTI +155°C for selected RM variants
02
PA66 p6g with RTI +125°C for selected RM variants
03
PA66 A3XG10 with RTI +115°C for selected solder blade variants
04
PBT pcg with RTI +130°C for RM 45° solder blade variants
05
PPS torA504 with RTI +130°C for RM power transformer 45° variants
06
Maximum soldering temperature up to +350°C for up to 2 seconds for most RM variants
07
RM power transformer 45° PPS variant supports up to +300°C for up to 2 seconds
08
Special radiation cross-linked materials and executions available on request
Downloads & Drawings
Technical Documents Without Friction.
Technical documentation is connected to the product structure at article level. Current released drawings are supplied through NORWE with the exact product context preserved for engineering and procurement workflows.
Technical Resource
Technical Data
Open the central document center for released technical and compliance documentation.
Open document center→
Technical Resource
Drawing Information
Select a product group and article to access released article-specific technical drawings directly.
Open product groups→
Technical Resource
Application Support
Clarify product suitability, material questions and production-related requirements with NORWE.
Request application support→
Technical Resource
Quote Preparation
Move from technical interest to quotation preparation with product and project context already included.
Request Quote→
Product documentation
Ordering Information
Family-specific ordering guidance for complex configurations, assembly options and order-code interpretation.
Open article ordering data →Product documentation
Supplementary Product Information
Additional technical information for this product family and its article variants.
Request current Supplementary Product Information →Downloads & Drawings
35 released drawings available directly through the articles.
Select the matching product group and article. Released drawings can then be opened directly without submitting a request.
Existing Resource Categories
RM Ordering ExampleRM Product InformationSolder Pin And Solder Blade OverviewRM / RM-LP Ferrite CoresPlastic Material ListRadiation Cross-Linking
Technical FAQ
Frequently Asked Questions.
RM coil formers are compact winding bodies for rectangular modular ferrite core geometries. They are suitable for pulse transformers, storage chokes, filters and DC/DC converter applications.
RM standard height versions provide the classic RM geometry, while RM-LP low-profile versions support reduced installation height for compact electronic assemblies.
Depending on the RM variant, NORWE uses PET rtg natural, PA66 p6g, PA66 A3XG10, PBT pcg, PPS torA504 and special materials such as radiation cross-linked thermoplastics on request.
Most RM variants support short-term soldering temperatures up to +350°C for up to 2 seconds. The RM power transformer 45° PPS variant supports up to +300°C for up to 2 seconds.
h-pins are used for radial winding and strain-relieved winding of thin wires and strands. z-pins support conventional winding and space-saving installation on the printed circuit board.
Yes. Special RM designs can support fully automatic winding and soldering, including bifilar winding concepts and up to 12 to 32 connection contacts depending on execution.
