PC Product Group

PC A 9x5 - PC A 18x11 With Terminal Carrier

Name: PC — PC A 9x5 - PC A 18x11 With Terminal Carrier
Brand: NORWE

Pot Core Coil Formers With Terminal Carrier

Pot core coil formers with integrated terminal carrier for low-stray-field transformers, inductors and converter applications.

Request Quote Request Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Core Range

PC A 9x5 - PC A 18x11

Design

Coil former with terminal carrier

Materials

PET rtg natural

RTI

+155°C

Pin System

Tin bronze, tin-plated solder pins

Soldering Resistance

+350°C up to 2 seconds

Application

Power applications, resonant coils and low-stray-field magnetic components

Benefit

Integrated solder pins and wire guidance areas support fully automatic winding on modern numerically controlled winding machines

PC A 9x5 - PC A 18x11 With Terminal Carrier technical product overview — Technical product overview · 8 verified article entries

Article Level

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

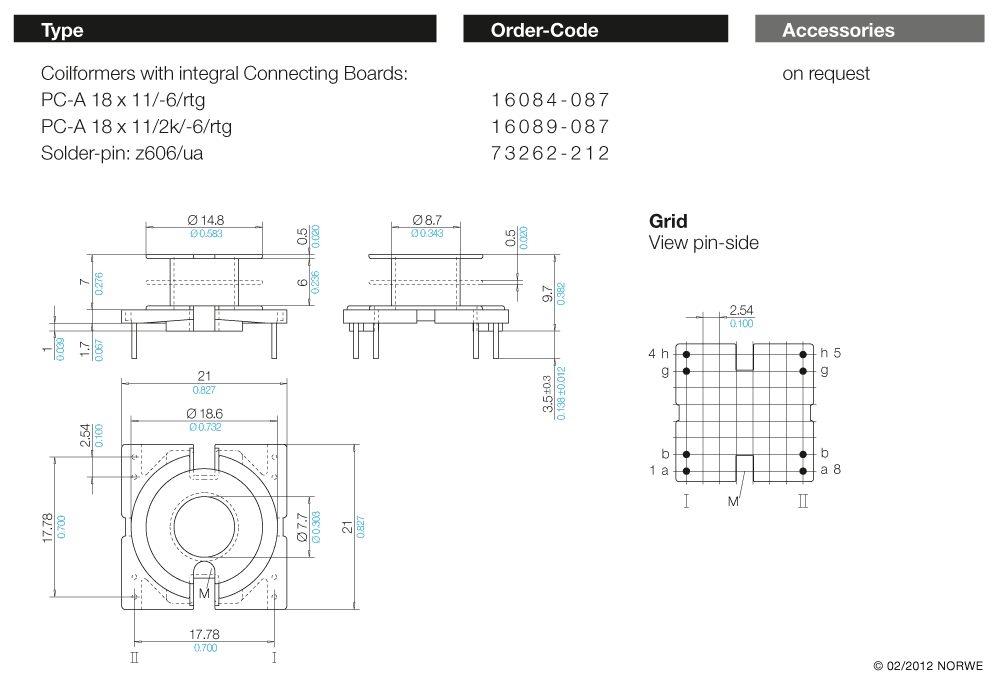

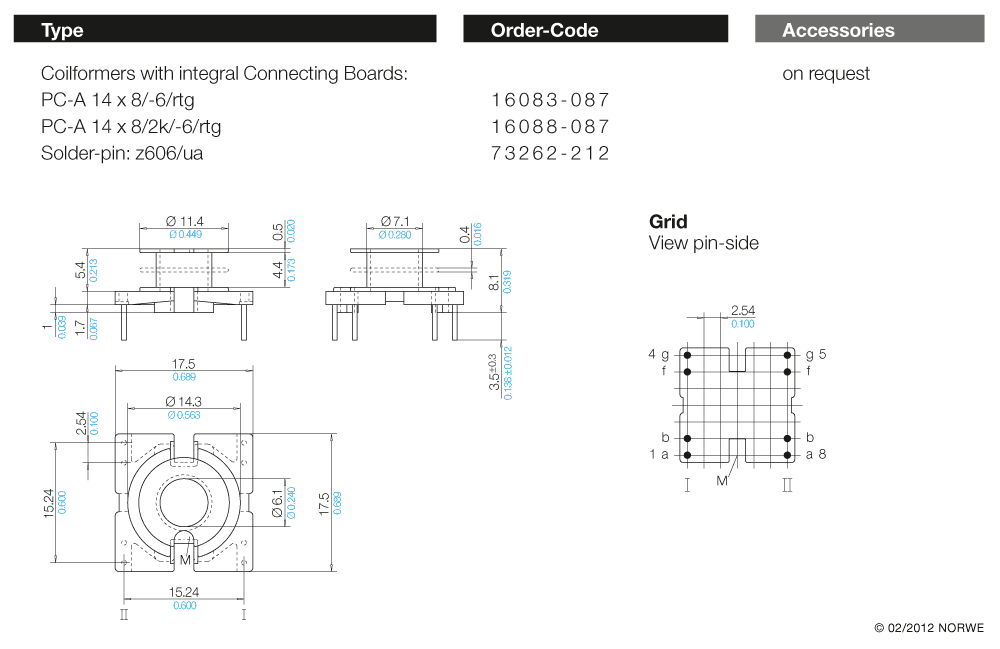

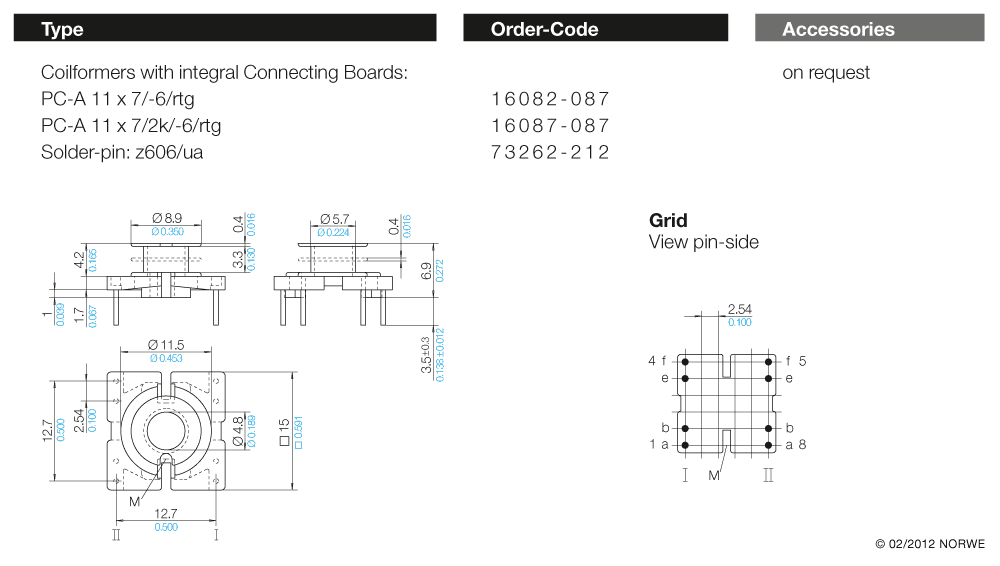

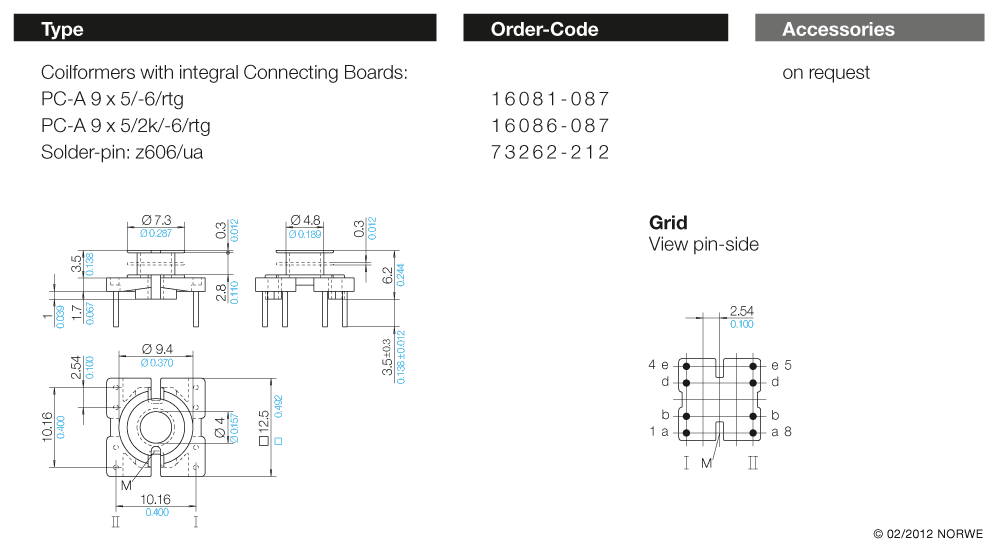

PreviewNORWE TypeOrder CodeStatusResources
