ID 9x5 - ID 36x22 Insulating Covers
Insulating Covers
Plastic insulating covers for mechanical protection and electrical insulation of pot core assemblies.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Function
Mechanical protection and electrical insulation
Materials
PA66 p6g natural
RTI
+125°C
Assembly Concept
Simple snap-in assembly creates a closed construction suitable for automated mounting on the terminal carrier and later on the PCB
Design Feature
Spring lugs fix the pot cores inside the terminal carrier and eliminate the need for spring inserts
Application
Protected and insulated pot core assemblies
Benefit
Supports mechanical protection, electrical insulation and automated assembly of pot core systems
Article Level
Available NORWE Types.

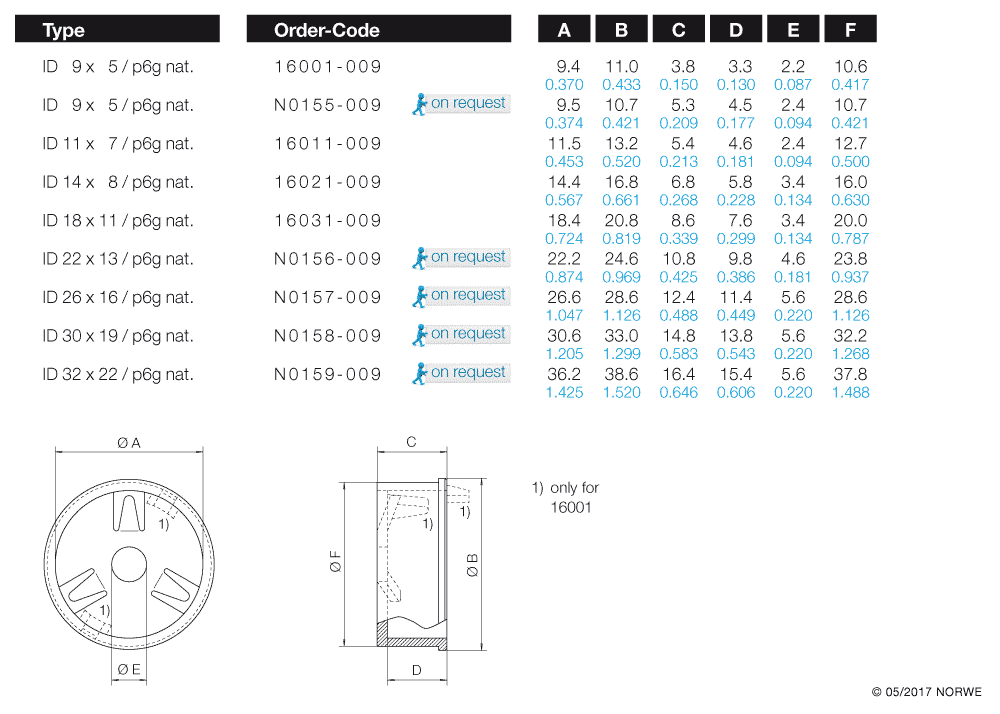

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type
ID 9 x 5/p6g nat.Order Code
16001-009Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
ID 9 x 5/p6g nat.Order Code
N0155-009Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type
ID 11 x 7/p6g nat.Order Code
16011-009Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
ID 14 x 8/p6g nat.Order Code
16021-009Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
ID 18 x 11/p6g nat.Order Code
16031-009Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
ID 22 x 13/p6g nat.Order Code
N0156-009Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type
ID 26 x 16/p6g nat.Order Code
N0157-009Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type
ID 30 x 19/p6g nat.Order Code
N0158-009Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type
ID 32 x 22/p6g nat.Order Code
N0159-009Status
on requestResources
2 downloads available
Article-level resource view
