ETD / EER Product Group

Protection Class With Distance Ring DR

Distance Ring / Protection Class Component

Distance rings DR for protection class transformer concepts and improved creepage and clearance distances.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Function

Distance ring for insulation concepts

Application

Protection class transformers with round winding cross-section

Materials

PA66 A RV250 natural or PET SKYT.5220FR

RTI

PA66 +100°C / PET +155°C

Design Note

Additively usable for practically all dimensions according to application

Benefit

Supports creepage and clearance distances between primary/secondary windings and to the core

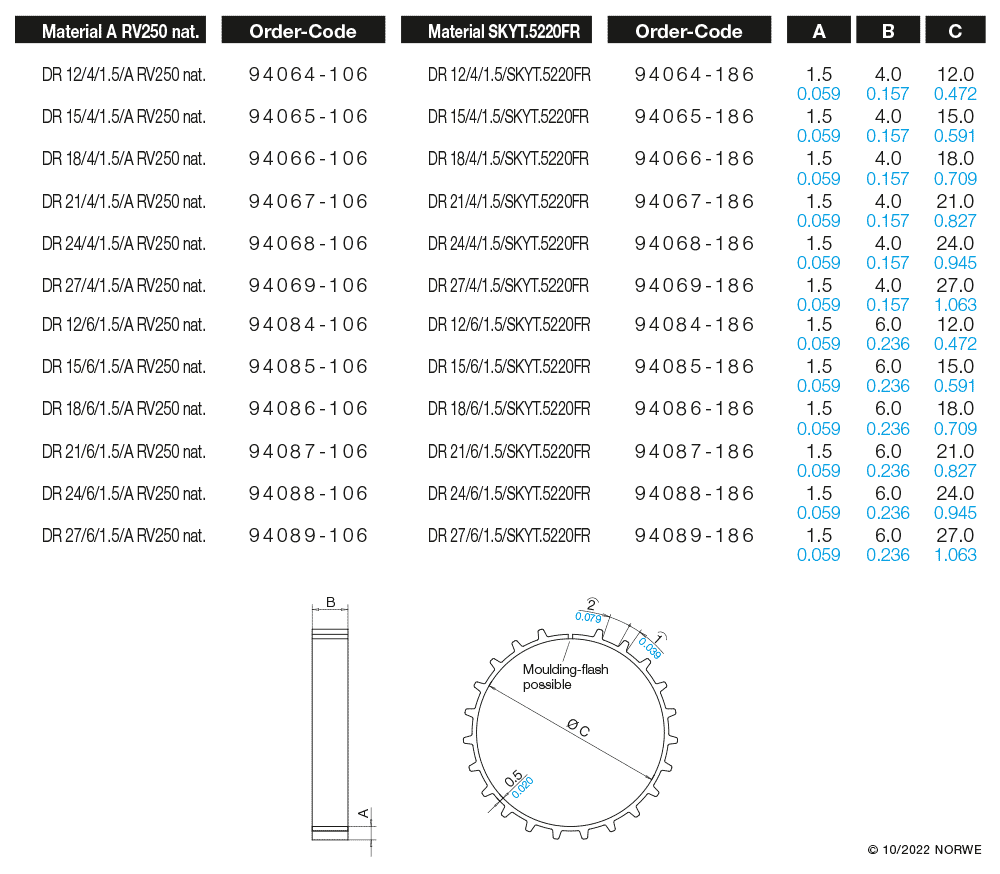

Technical product overview · 24 verified article entries

Article Level

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
