Series
ETD Protection Class
ETD / EER Product Group
ETD Protection Class Coil Formers / Concentric Design
Protection Class Coil Formers
ETD protection class coil formers in concentric design for transformers with separated primary and secondary windings.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Design
Concentric design
Materials
PA66 A RV250 natural
RTI
+100°C
Blade System
Brass, subsequently tin-plated solder blades
Soldering Resistance
+350°C up to 2 seconds
Application
Protection class transformers with separated primary and secondary winding sections
Benefit
Primary and secondary halves can be wound separately for demanding insulation concepts
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

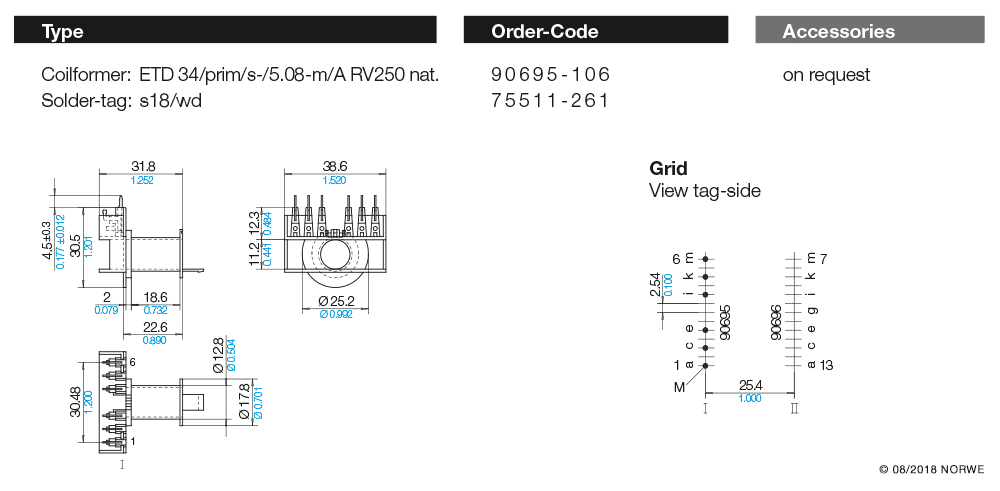

ETD 34/prim/s-/5,08-m/A RV250 nat.Order Code
90695-106Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

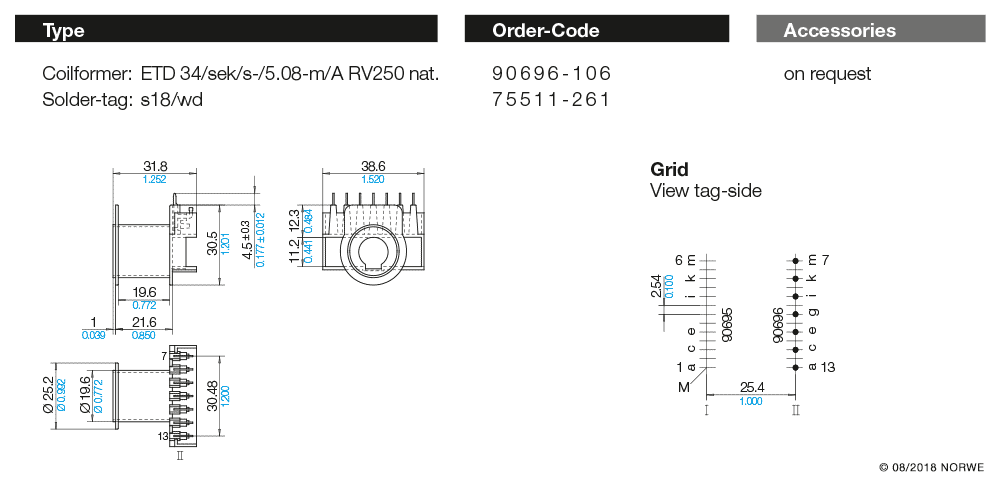

ETD 34/sek/s-/5,08-m/A RV250 nat.Order Code
90696-106Status
AvailableResources
2 downloads available
Article-level resource view
Need Support With This Product Group?
Talk to NORWE about ETD Protection Class Coil Formers / Concentric Design, article selection, drawings, samples or quotation preparation.
