Vertical EER Coil Formers
Vertical EER coil formers in modern design with solder pins for upright transformer applications.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Orientation
Vertical
Materials
PET SKYT.5220FR
RTI
+155°C
Pin System
Tin bronze, tin-plated solder pins
Soldering Resistance
+350°C up to 2 seconds
Design
Modern design with solder pins
Benefit
Vertical EER configuration for compact and reliable high-frequency assemblies
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
No preview
NORWE Type
EER 25/v10/-8/SKYT.5220FROrder Code
N0086-186Status
AvailableResources
Technical support
Article-level resource view
No preview
NORWE Type
EER 25/v10/-8/2,54/SKYT.5220FROrder Code
N0087-186Status
AvailableResources
Technical support
Article-level resource view
NORWE Type

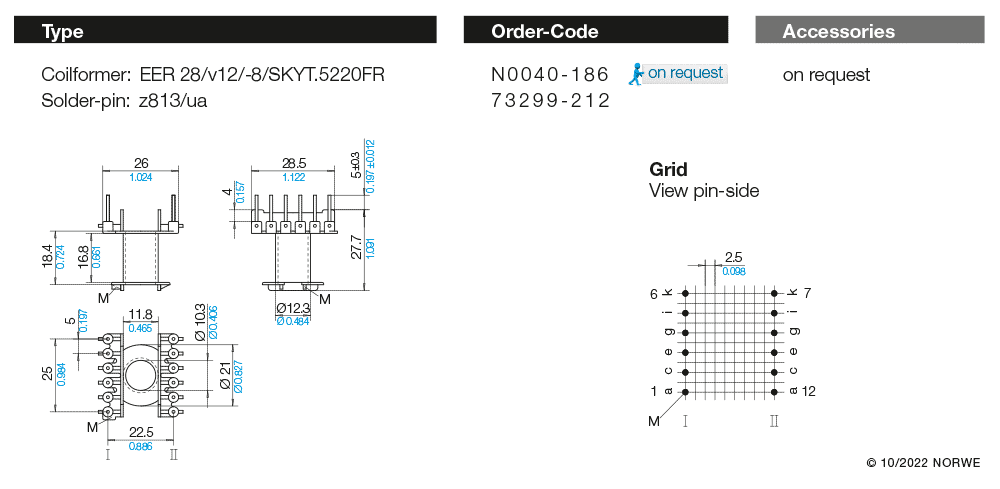

EER 28/v12/-8/SKYT.5220FROrder Code
N0040-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

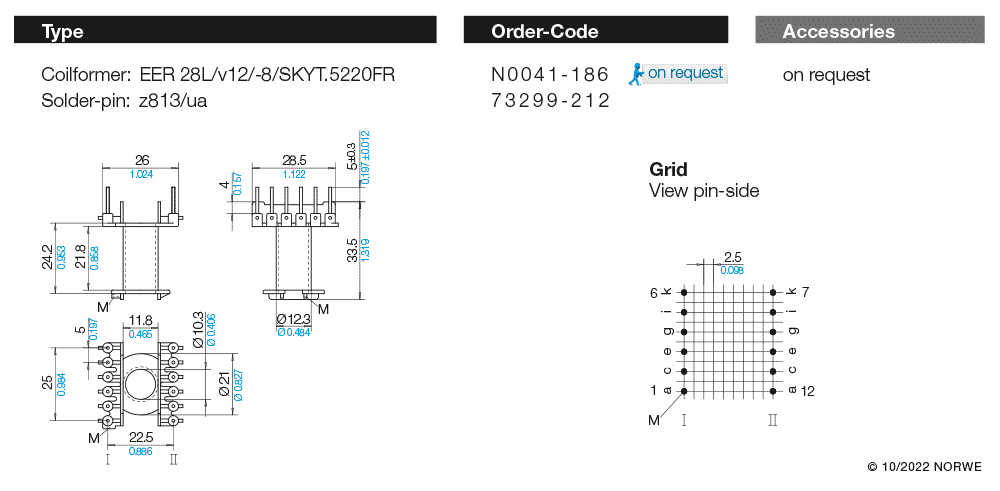

EER 28L/v12/-8/SKYT.5220FROrder Code
N0041-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

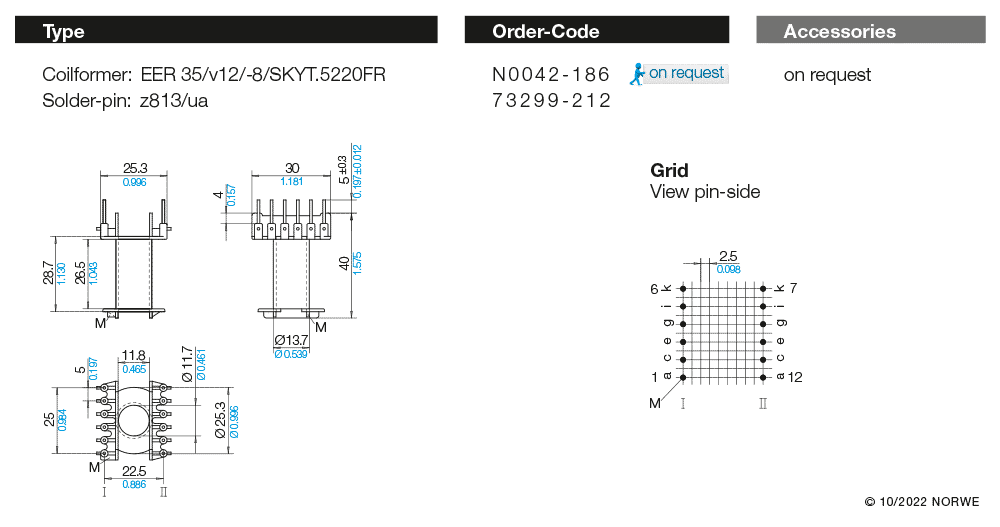

EER 35/v12/-8/SKYT.5220FROrder Code
N0042-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

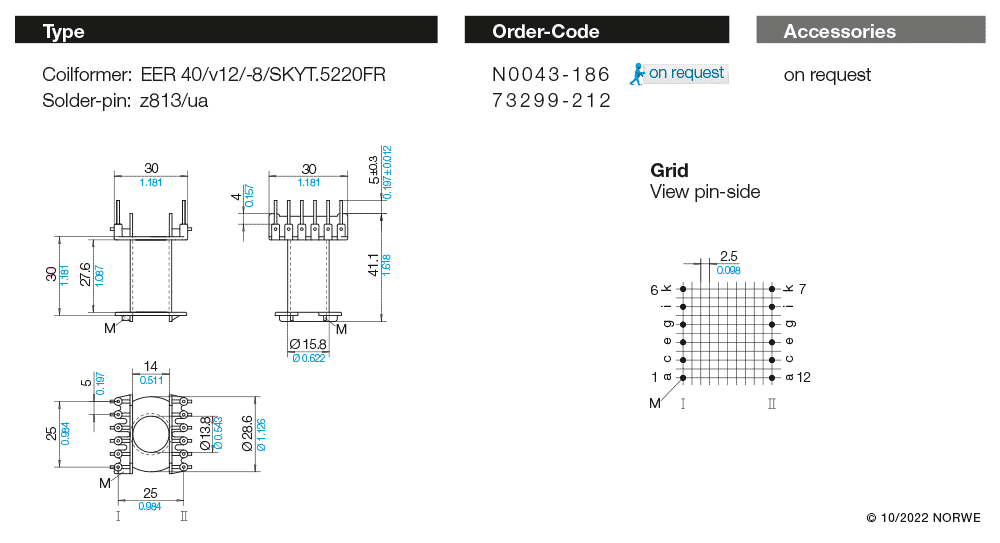

EER 40/v12/-8/SKYT.5220FROrder Code
N0043-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

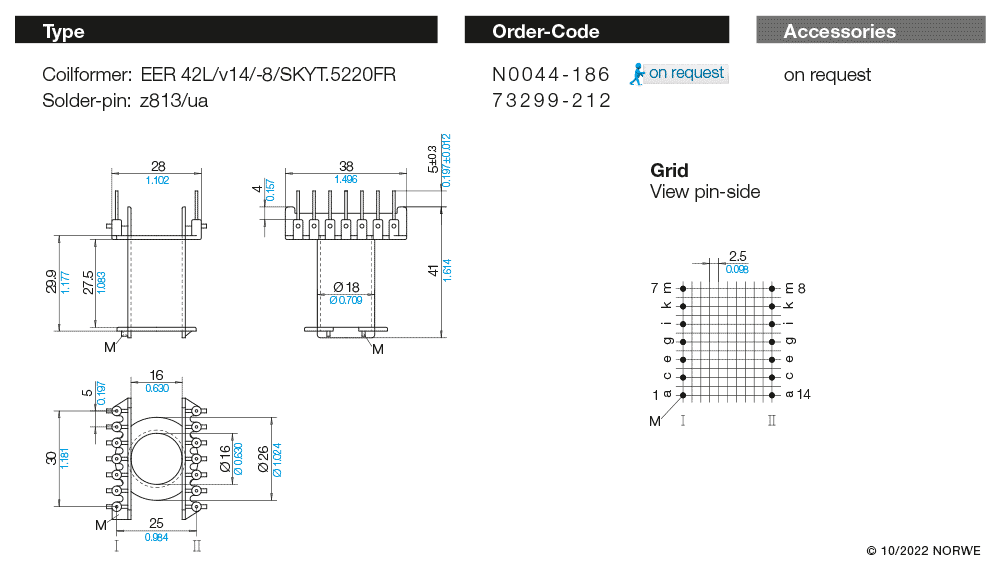

EER 42L/v14/-8/SKYT.5220FROrder Code
N0044-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

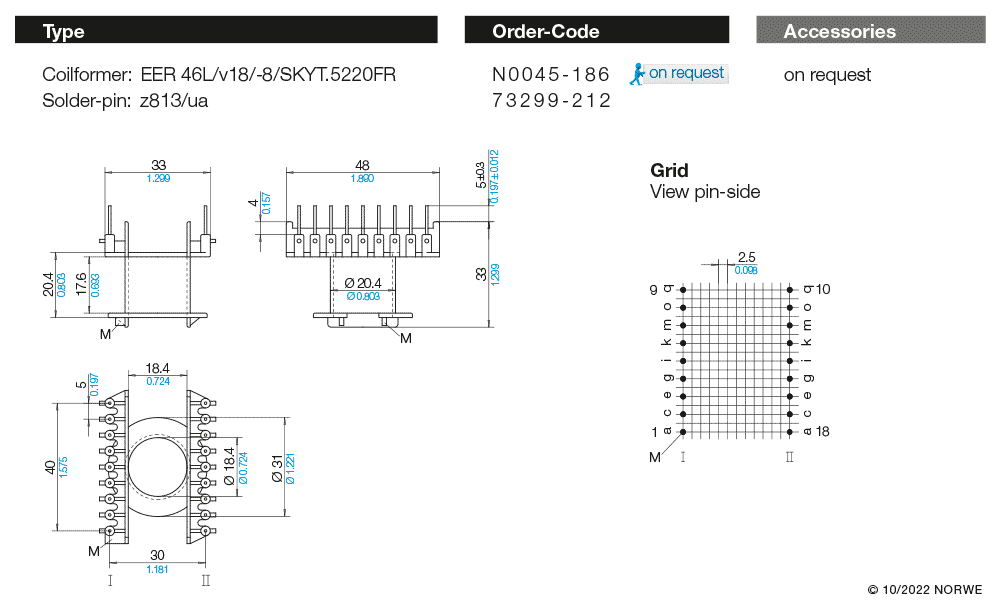

EER 46L/v18/-8/SKYT.5220FROrder Code
N0045-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type
EER 48/v20/-8/SKYT.5220FROrder Code
N0046-186Status
on requestResources
2 downloads available
Article-level resource view

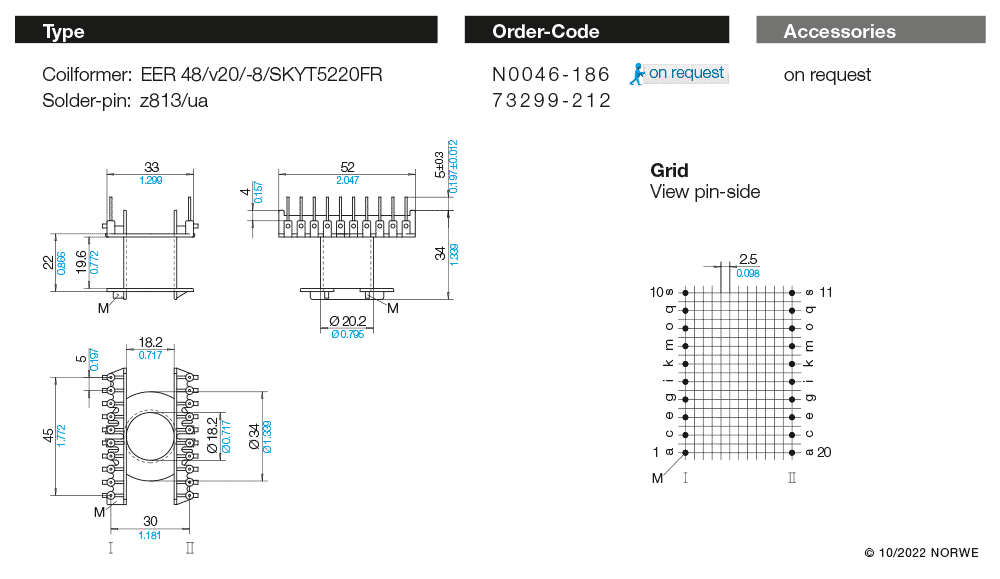

NORWE Type

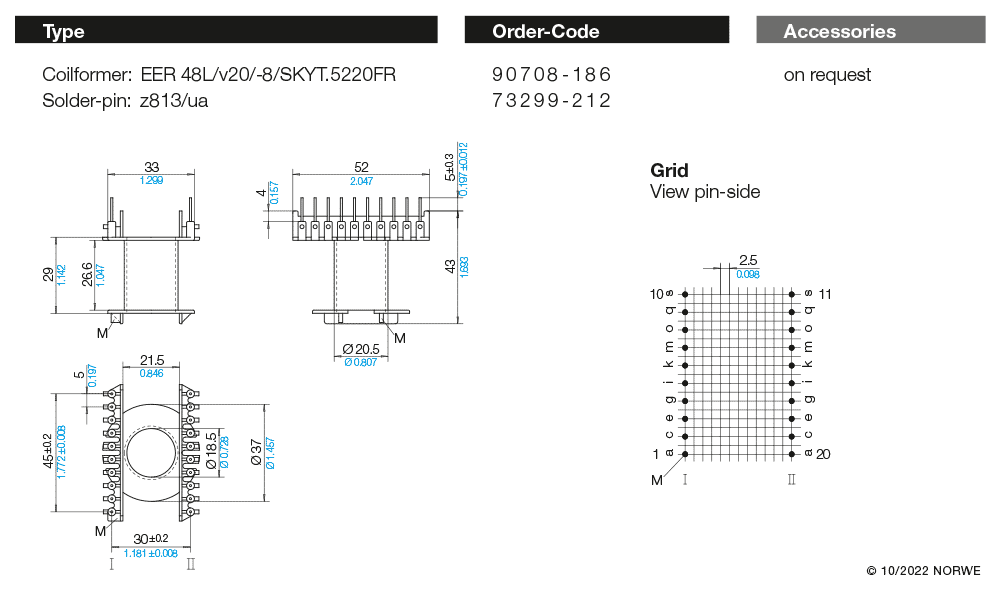

EER 48L/v20/-8/SKYT.5220FROrder Code
90708-186Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

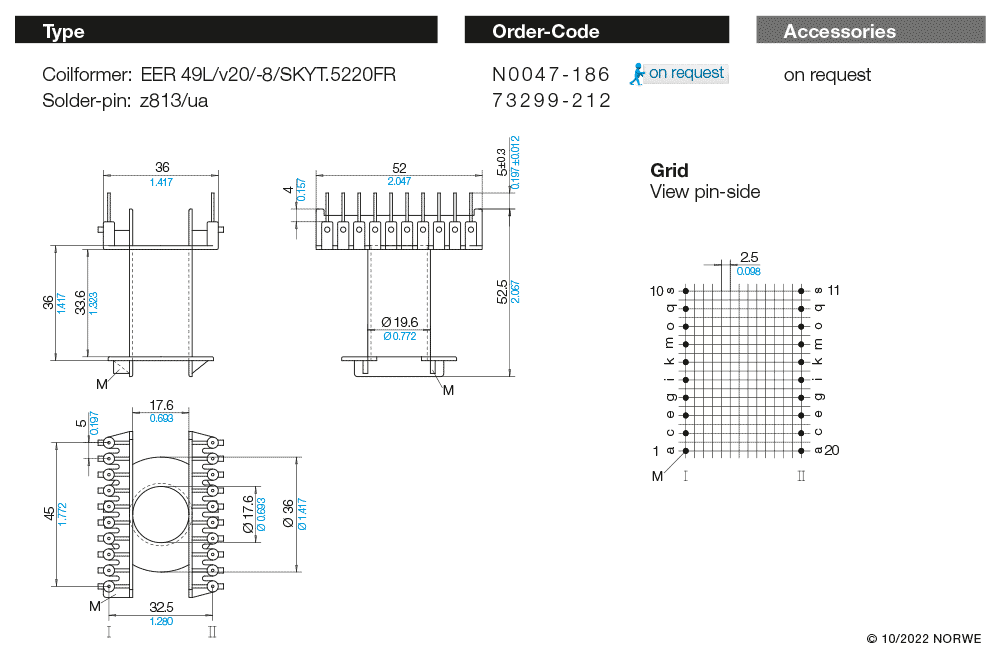

EER 49L/v20/-8/SKYT.5220FROrder Code
N0047-186Status
on requestResources
2 downloads available
Article-level resource view

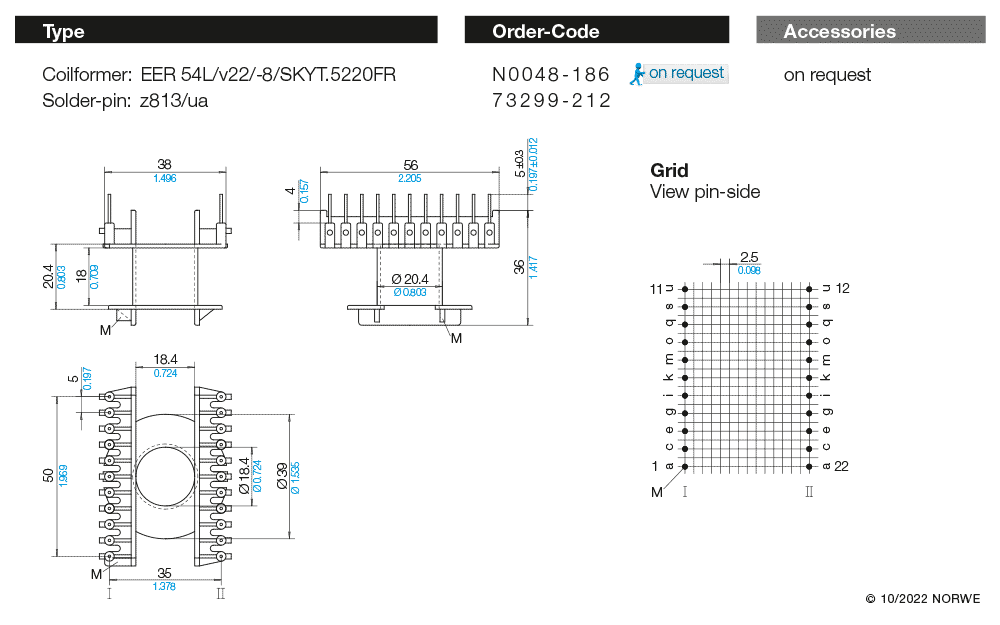

NORWE Type
EER 54L/v22/-8/SKYT.5220FROrder Code
N0048-186Status
on requestResources
2 downloads available
Article-level resource view
