EER Coil Formers Horizontal
Horizontal EER Coil Formers
Horizontal EER coil formers in modern design with solder pins for high-frequency transformer applications.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Orientation
Horizontal
Materials
PET SKYT.5220FR
RTI
+155°C
Pin System
Tin bronze, tin-plated solder pins
Soldering Resistance
+350°C up to 2 seconds
Design
Modern design with solder pins
Benefit
Modern EER geometry for efficient high-frequency transformer designs
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
No preview
NORWE Type

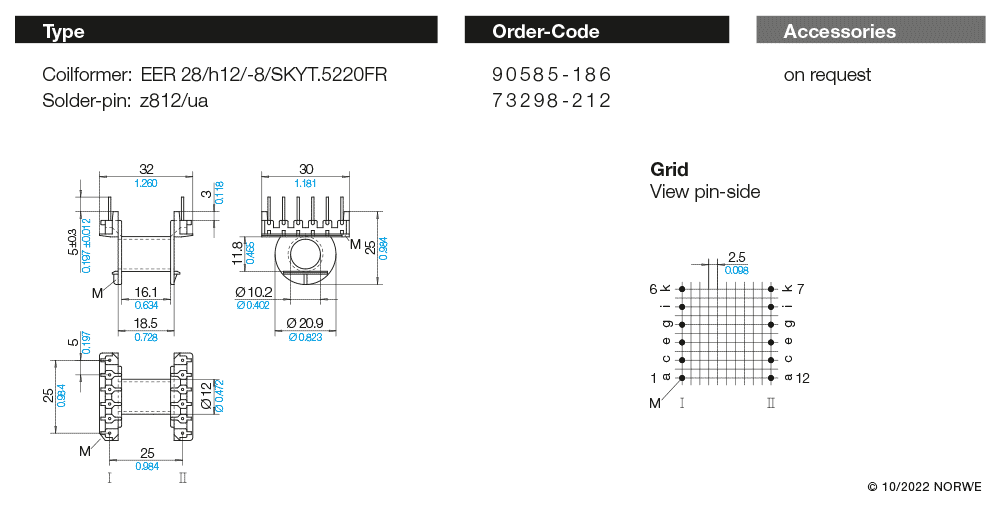

EER 25/h10/-8/SKYT.5220FROrder Code
N0084-186Status
AvailableResources
Technical support
Article-level resource view
No preview
NORWE Type
EER 25/h10/-8/2,54/SKYT.5220FROrder Code
N0085-186Status
AvailableResources
Technical support
Article-level resource view
NORWE Type

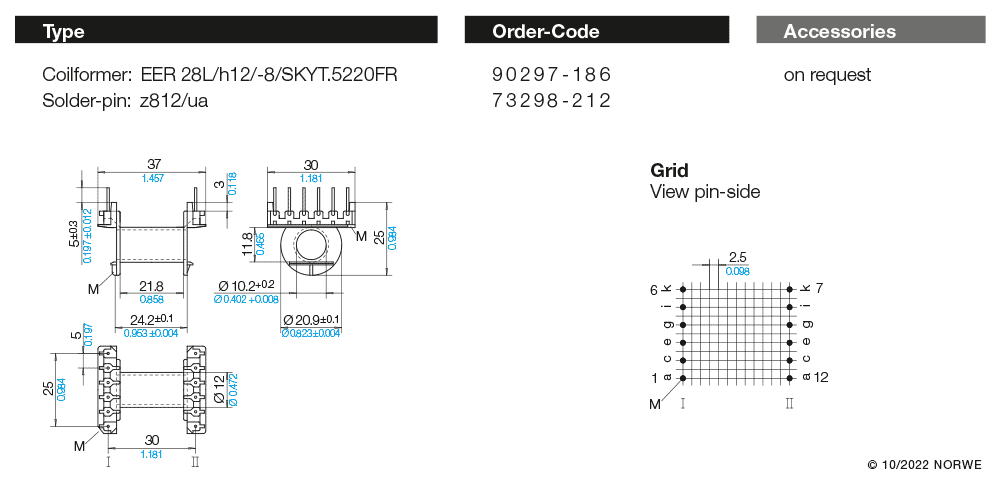

EER 28/h12/-8/SKYT.5220FROrder Code
90585-186Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
EER 28L/h12/-8/SKYT.5220FROrder Code
90297-186Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

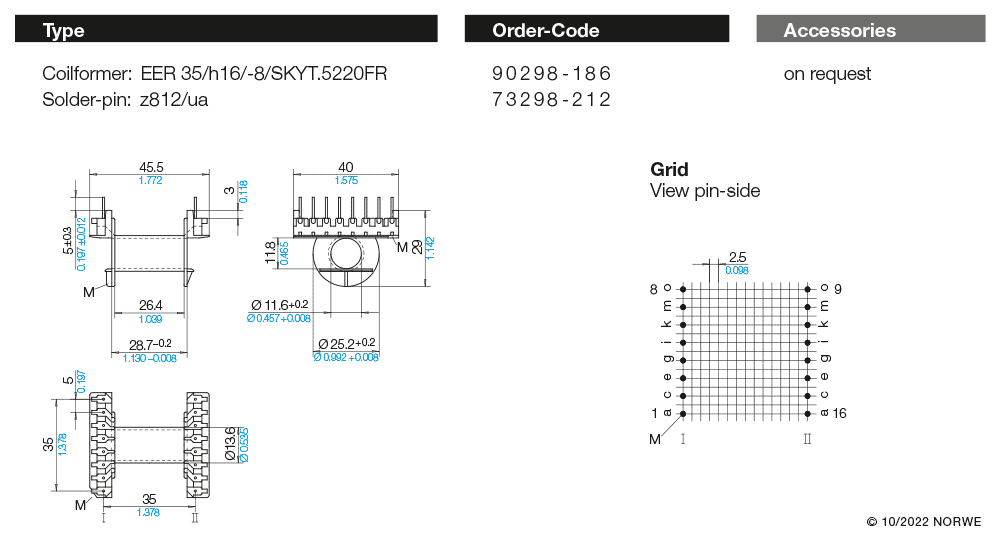

EER 35/h16/-8/SKYT.5220FROrder Code
90298-186Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

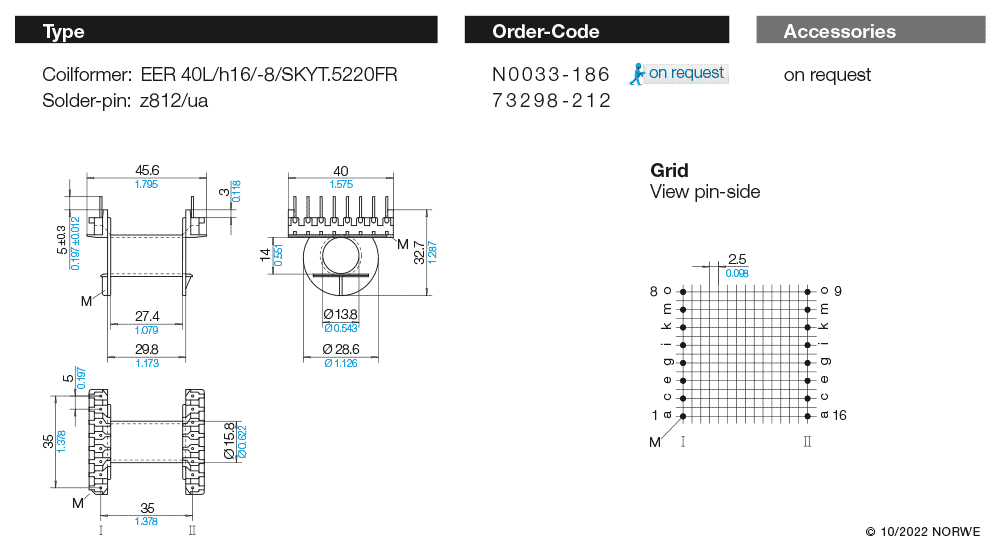

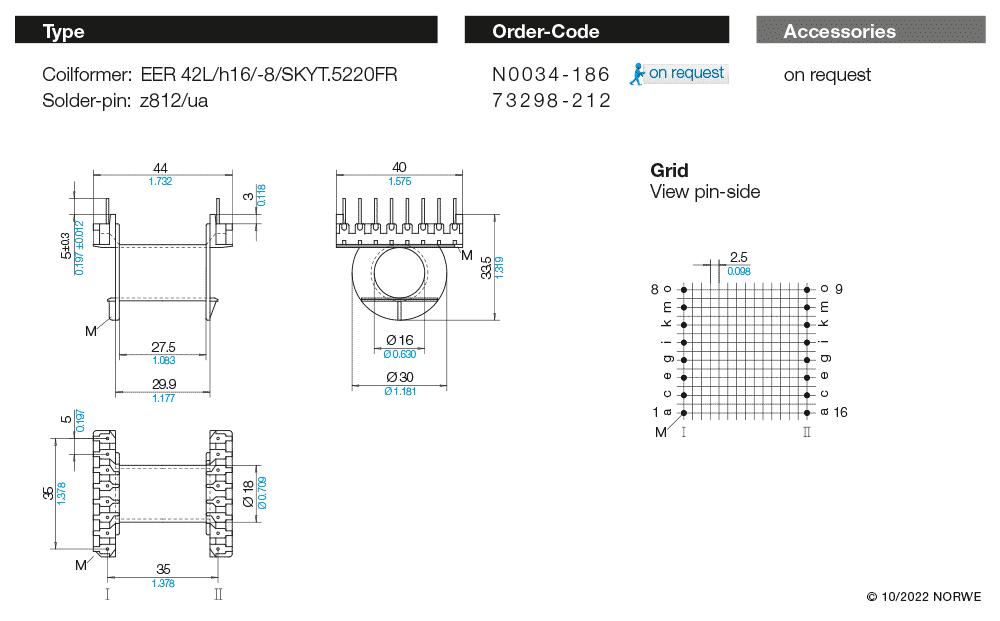

EER 40L/h16/-8/SKYT.5220FROrder Code
N0033-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type
EER 42L/h16/-8/SKYT.5220FROrder Code
N0034-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

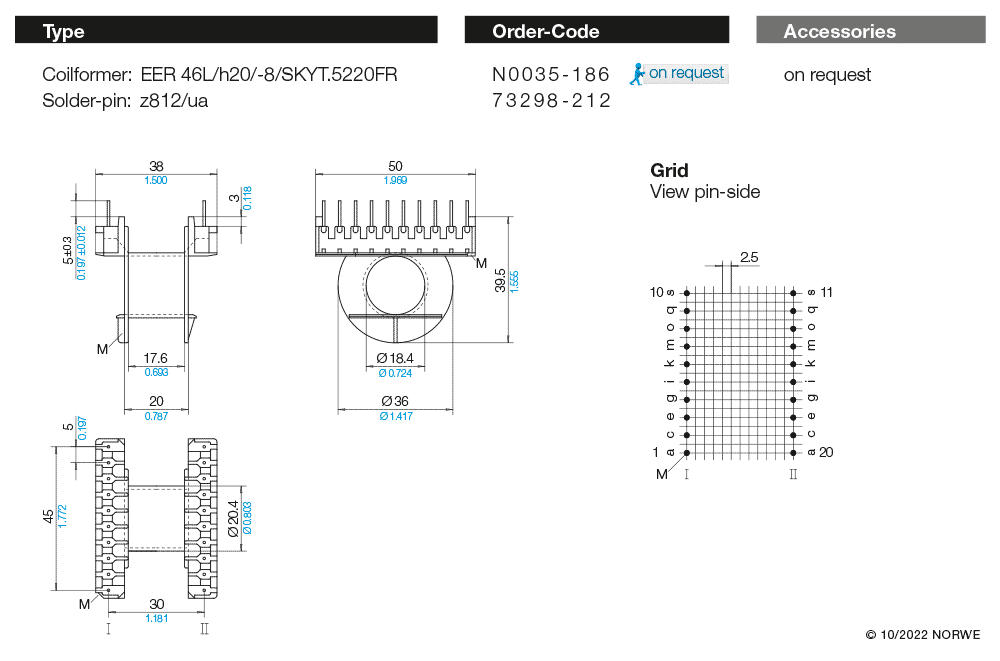

EER 46L/h20/-8/SKYT.5220FROrder Code
N0035-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

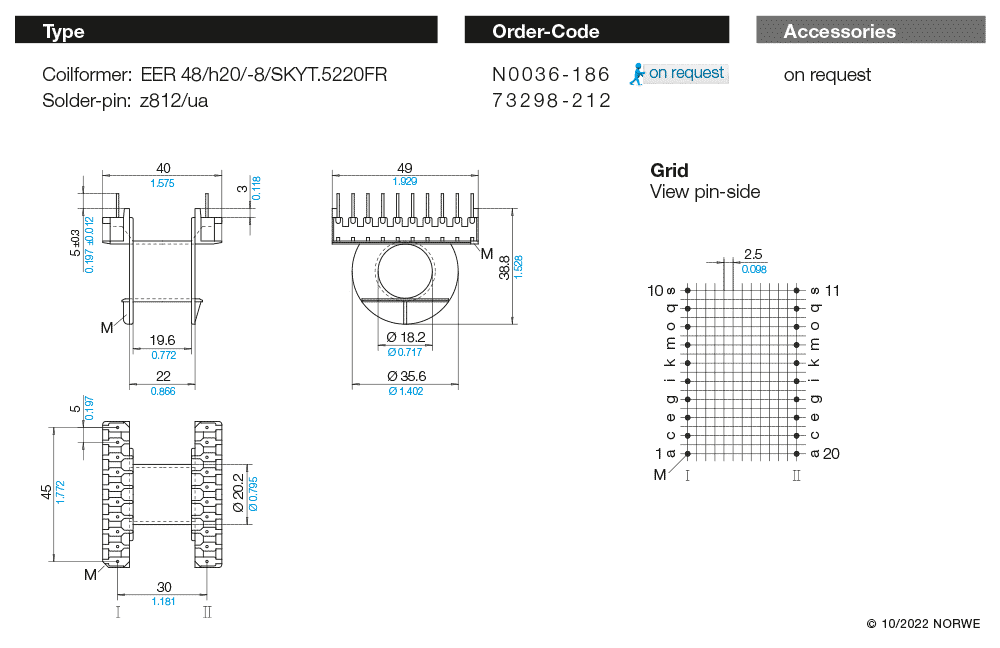

EER 48/h20/-8/SKYT.5220FROrder Code
N0036-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

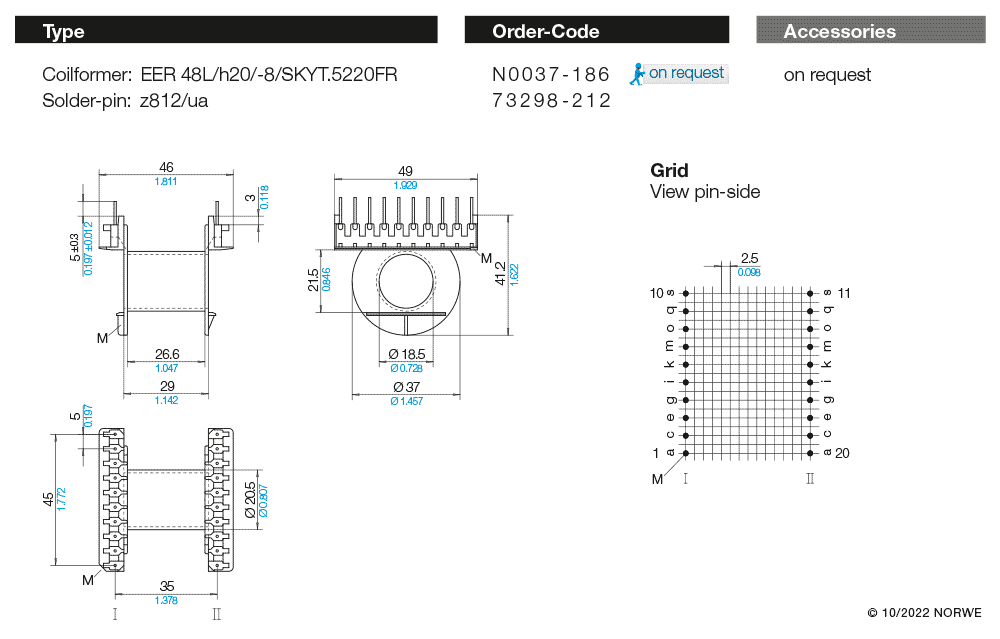

EER 48L/h20/-8/SKYT.5220FROrder Code
N0037-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

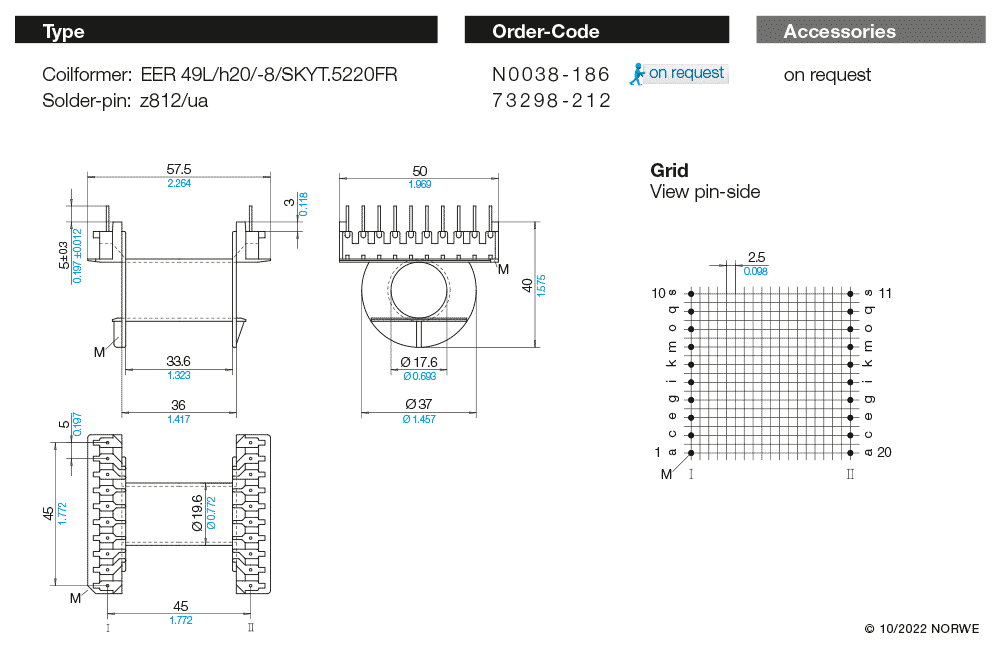

EER 49L/h20/-8/SKYT.5220FROrder Code
N0038-186Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

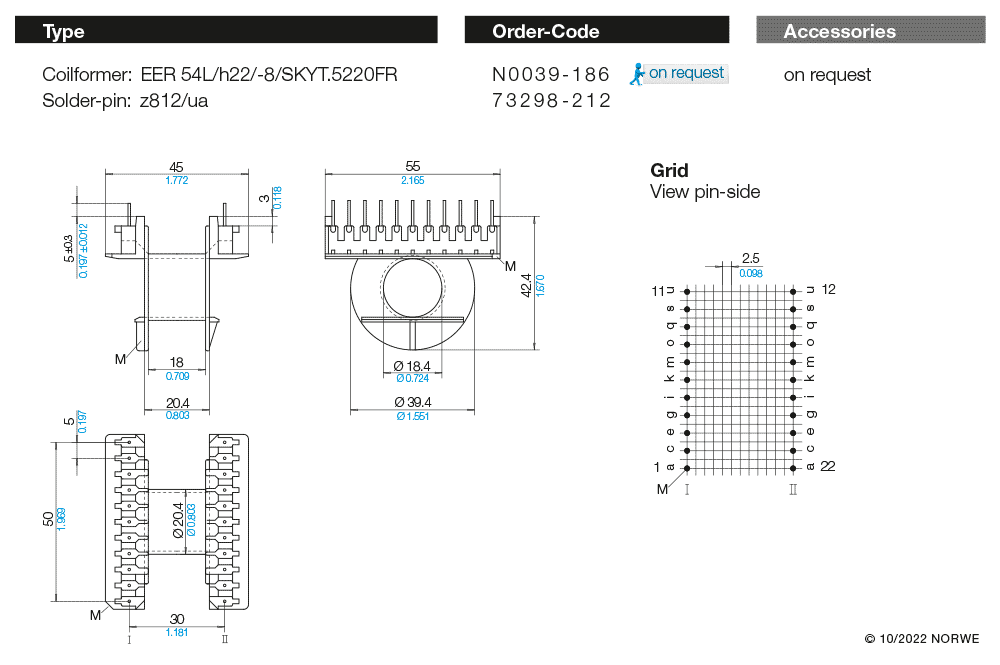

EER 54L/h20/-8/SKYT.5220FROrder Code
N0039-186Status
on requestResources
2 downloads available
Article-level resource view
