Products/EI / UI

EI / UI Product Group

EJ 19 - EJ 78 Horizontal

EI Horizontal Coil Formers

Horizontal EI coil formers for EJ laminated core transformer applications with multiple connection technologies.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Core Range

EJ 19 - EJ 78

Orientation

Horizontal

Materials

PA66 p6g

RTI

+125°C

Pin / Blade System

Tin bronze, tin-plated solder pins or brass, tin-plated solder blades

Soldering Resistance

+350°C up to 2 seconds

Application

Small transformers and laminated core transformer assemblies

Benefit

Supports radial and axial wire termination through different connection technologies such as press-fit pins, bent pins and solder blades

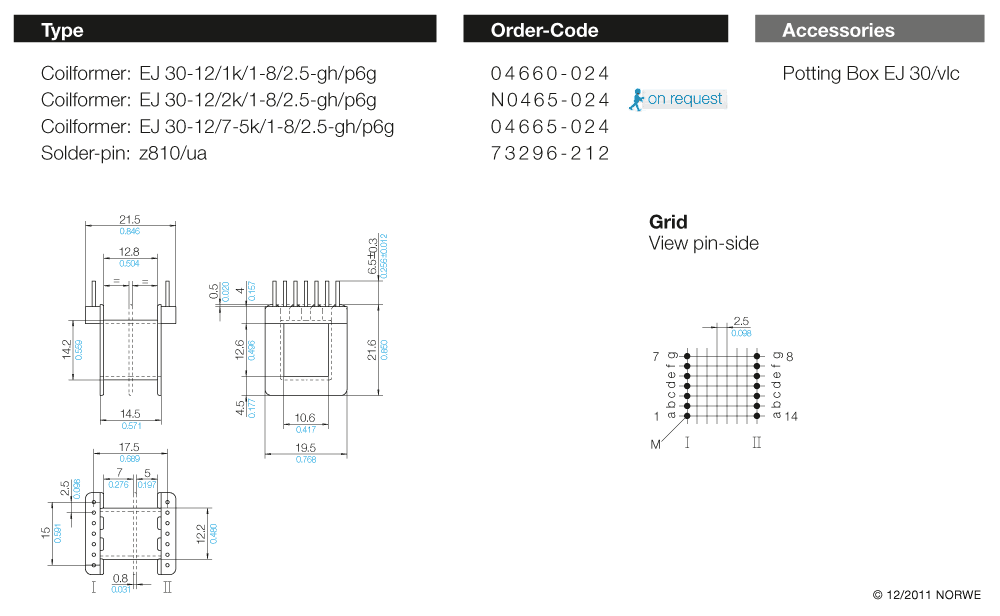

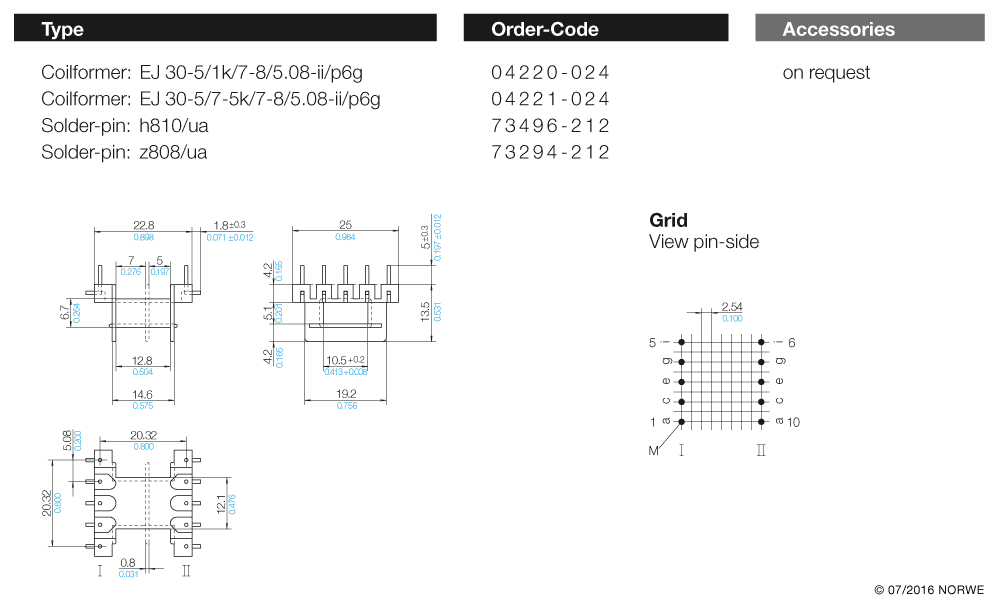

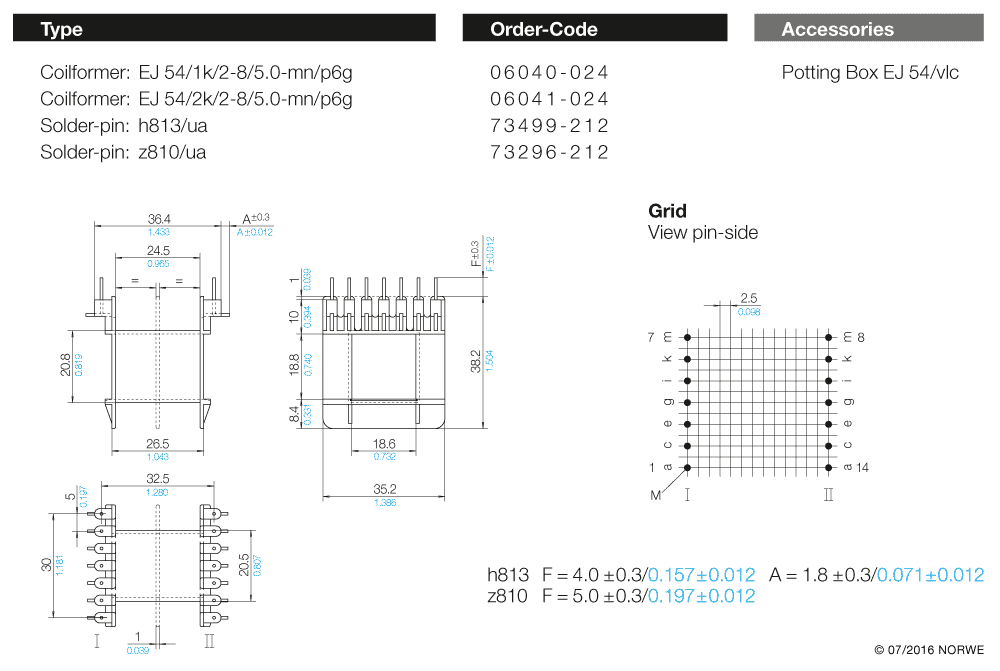

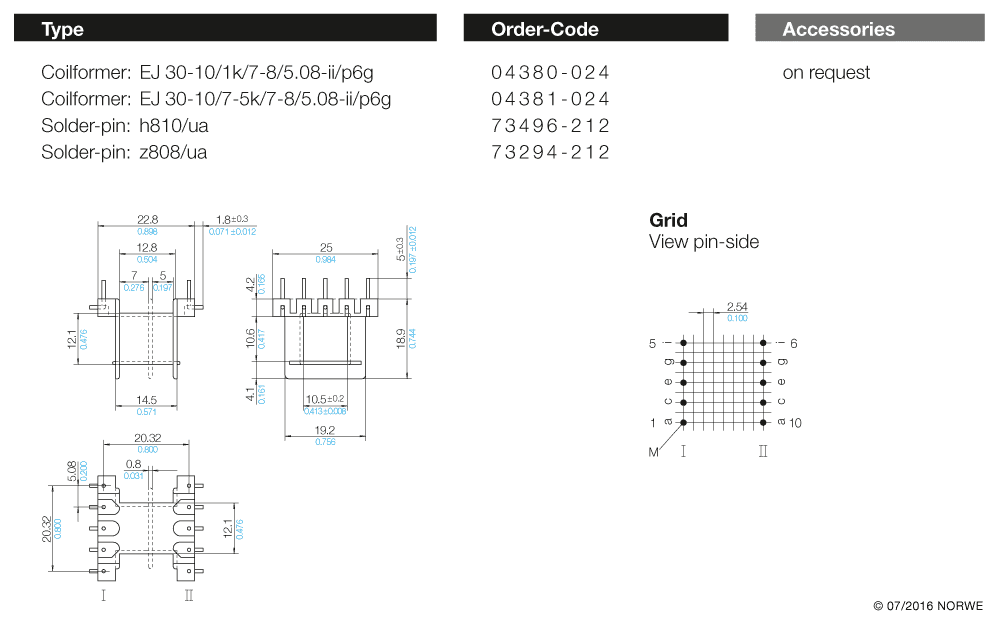

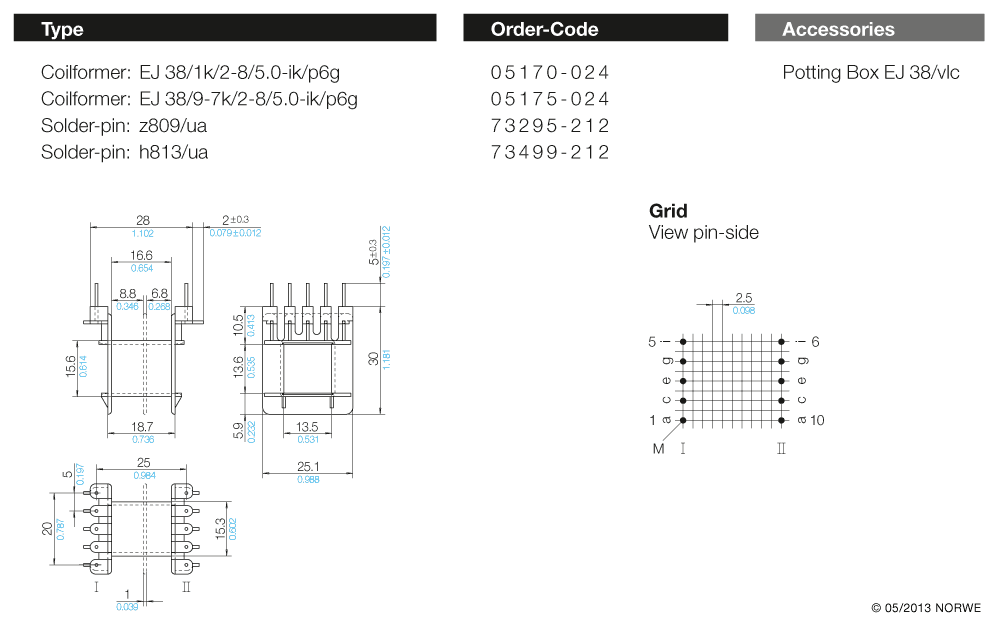

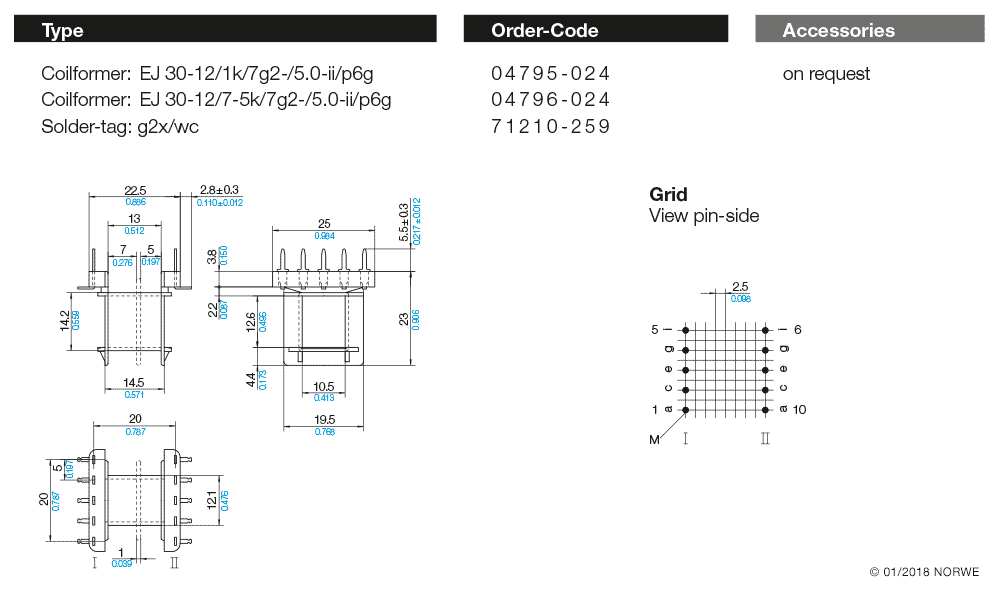

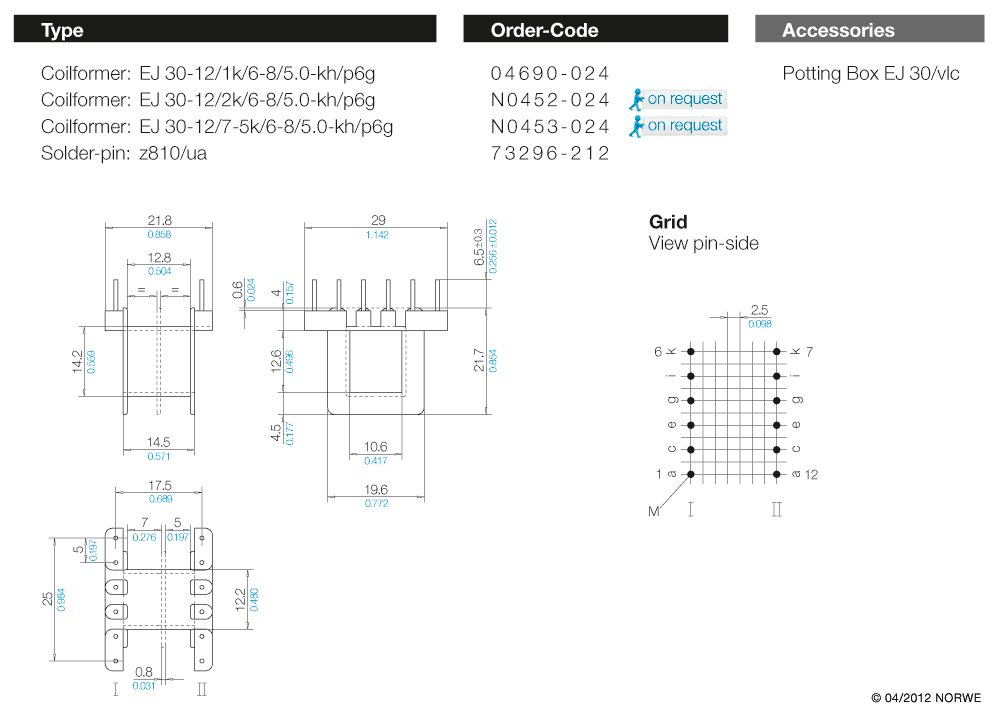

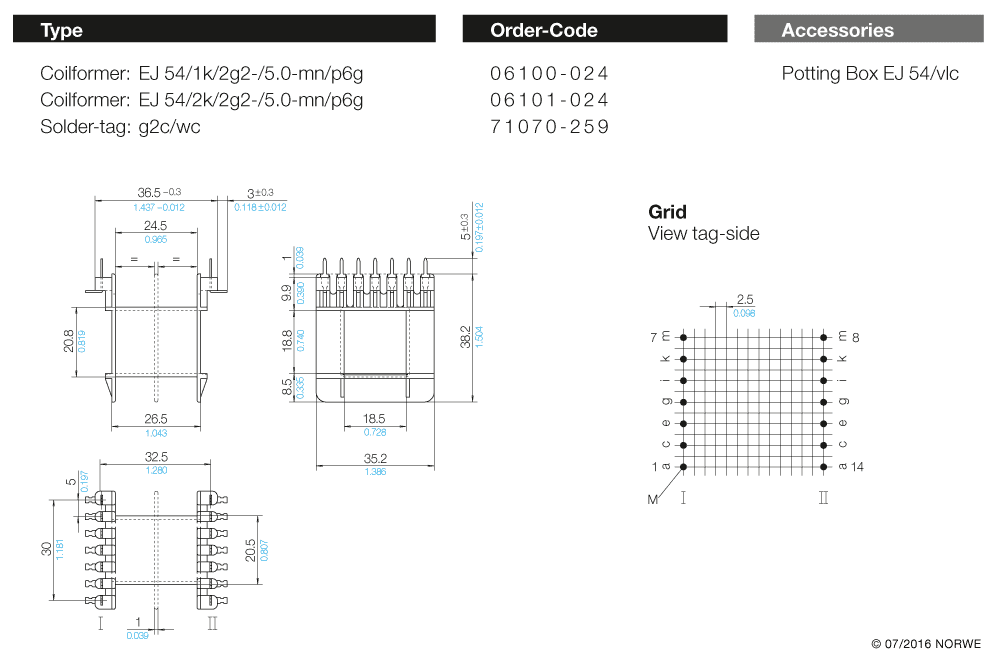

Technical product overview · 167 verified article entries

Article Level

Available NORWE Types.

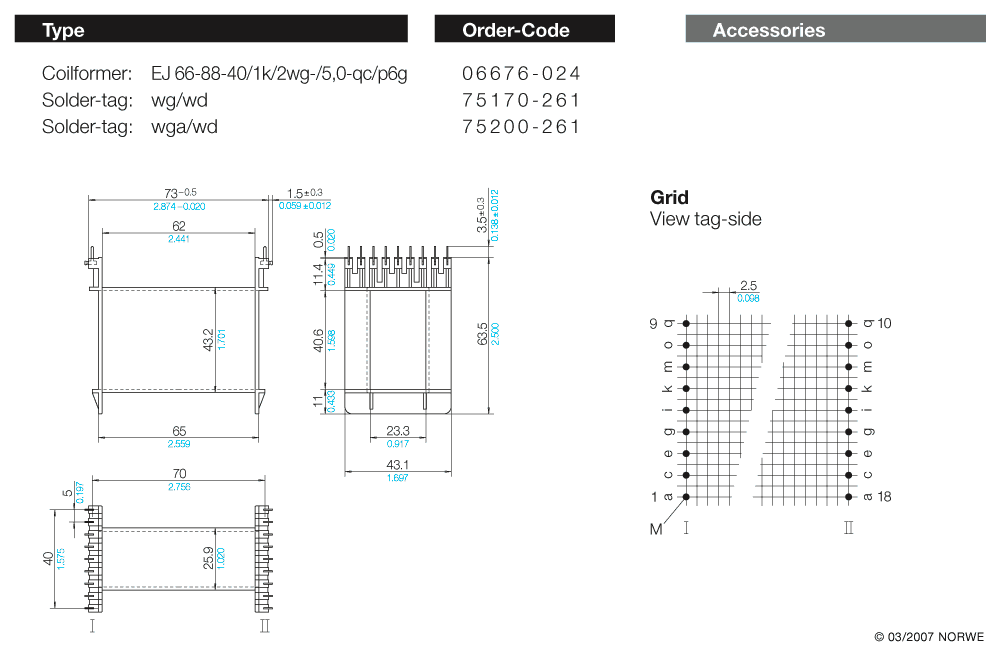

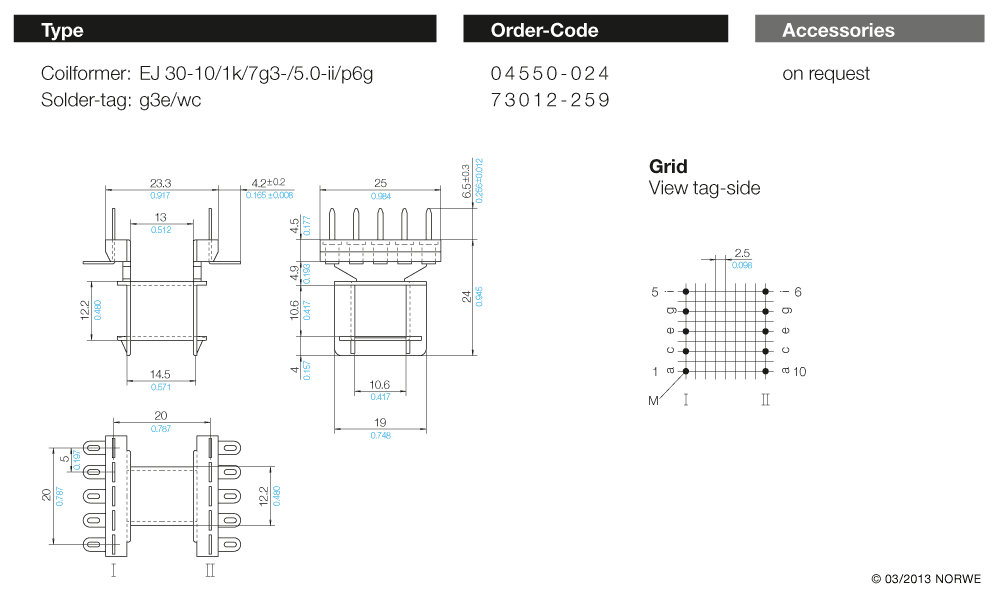

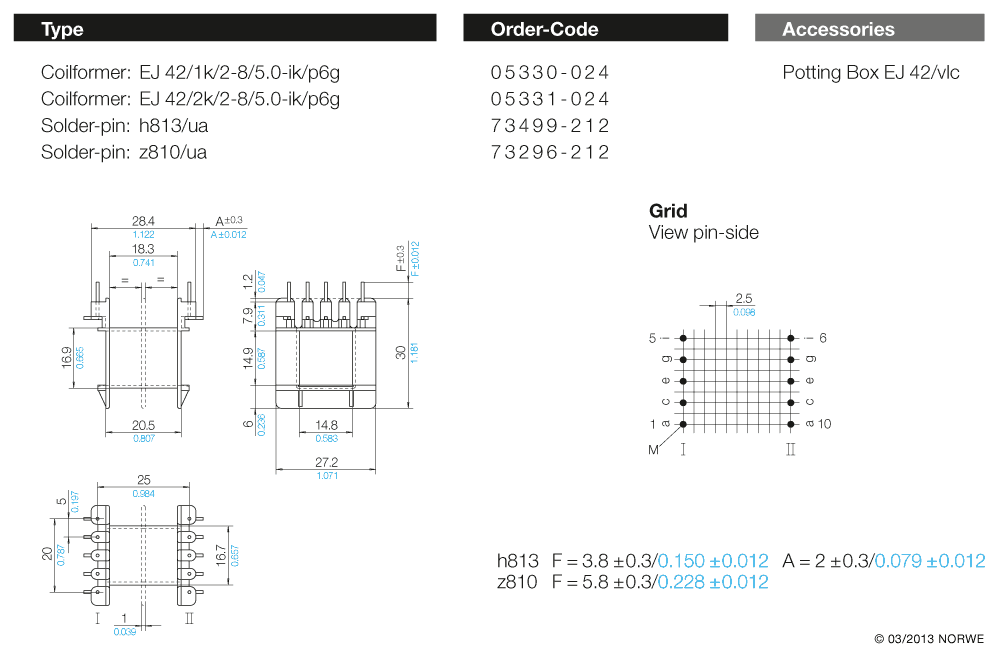

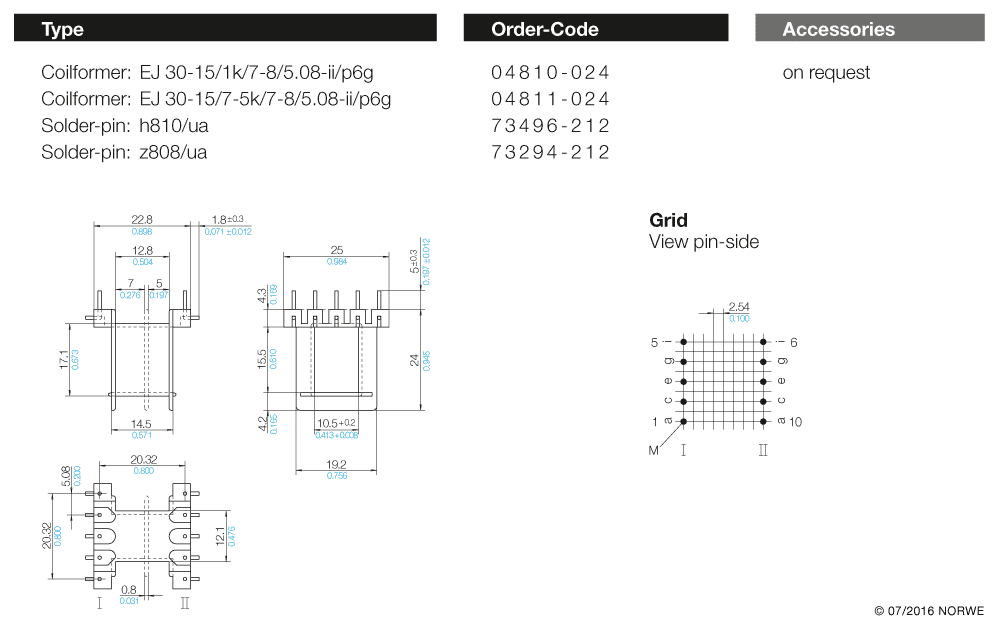

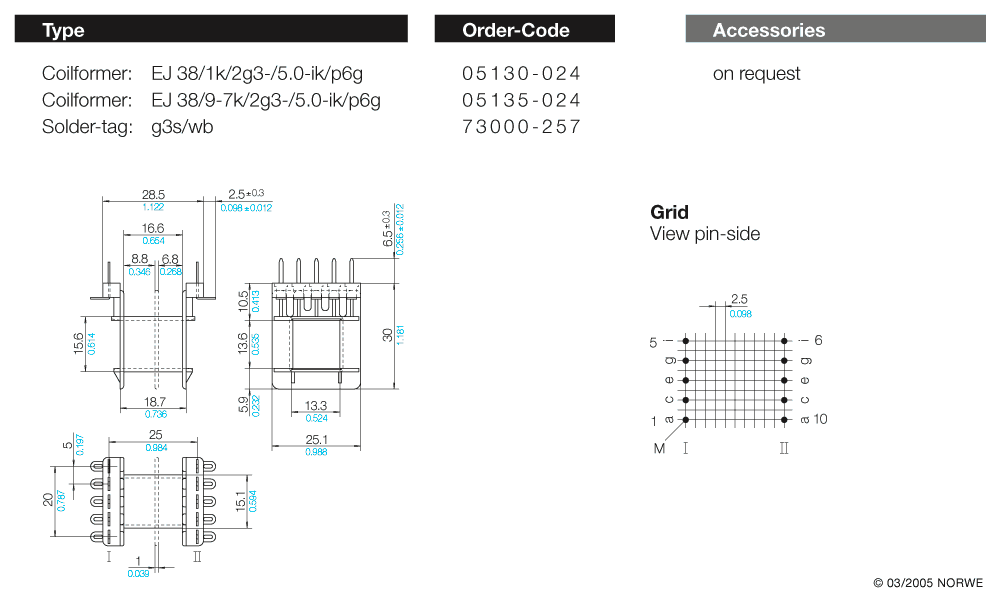

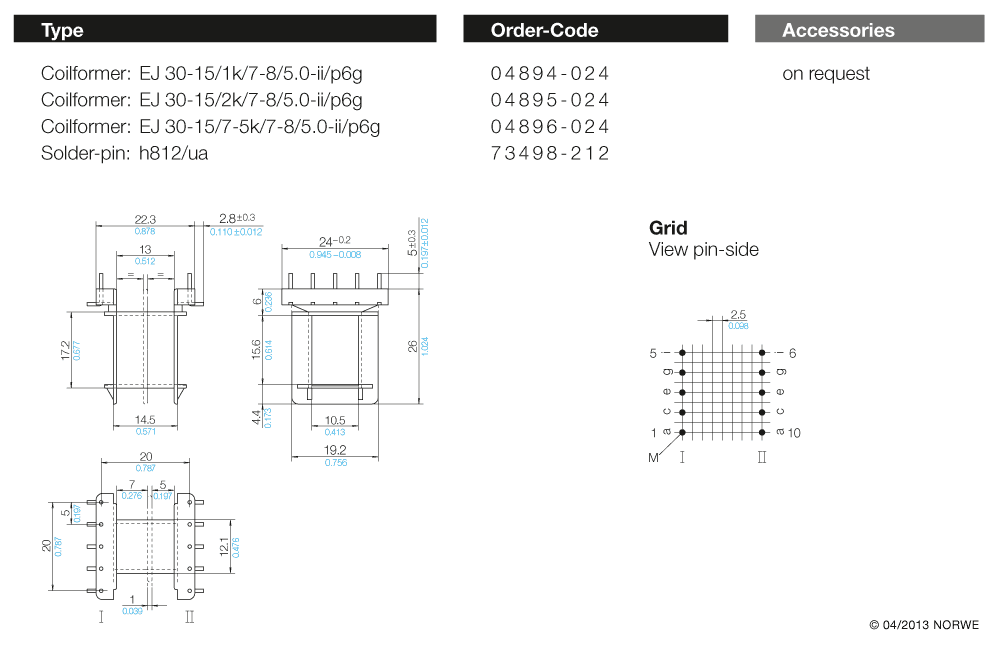

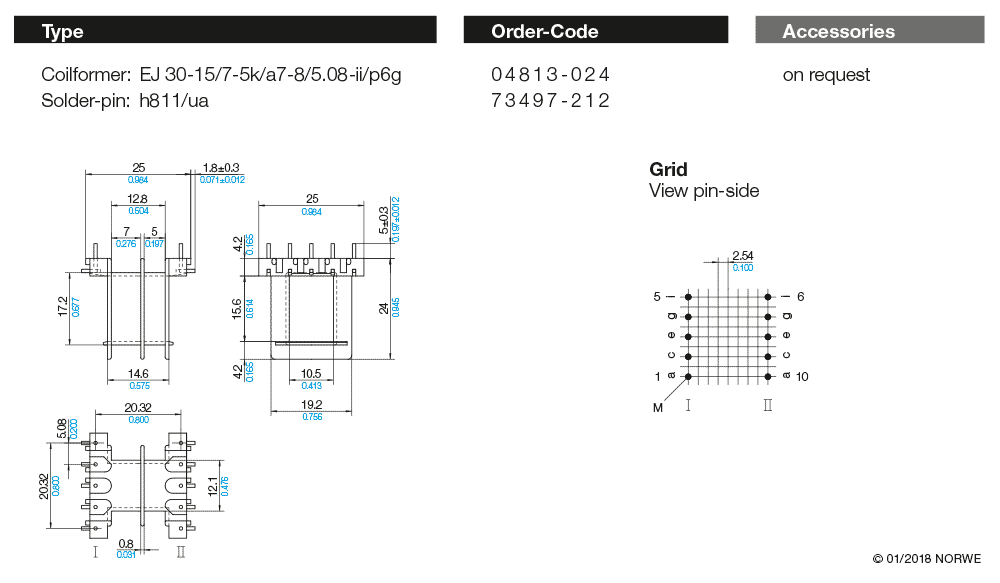

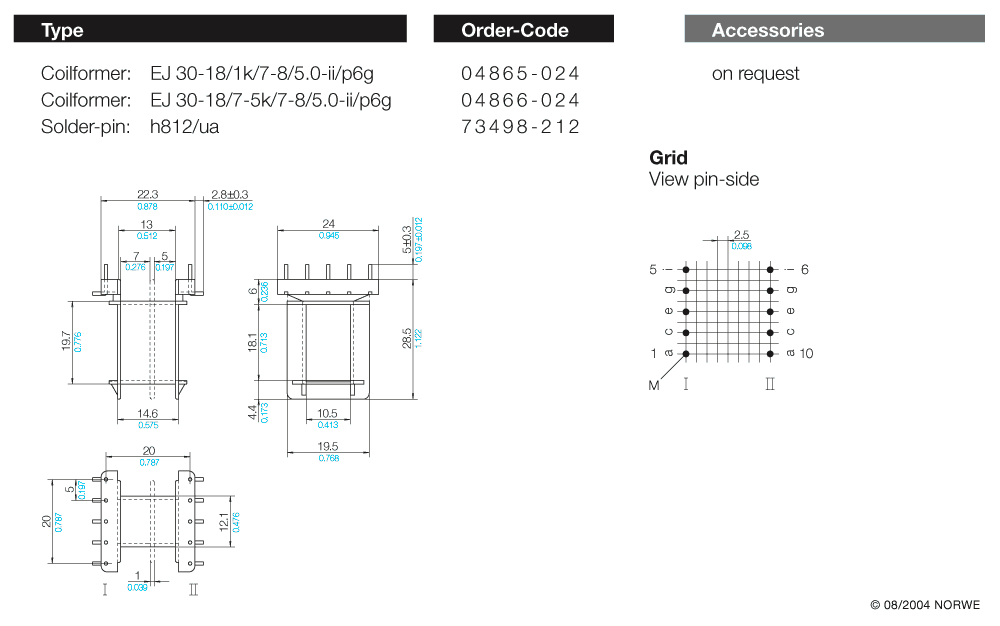

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about EJ 19 - EJ 78 Horizontal, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
