Products/EI / UI

EI / UI Product Group

2UJ 30 - 2UJ 60 Horizontal

UI Coil Formers

UI coil formers for laminated core transformer applications with flexible connection technologies.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Core Range

2UJ 30 - 2UJ 60

Orientation

Horizontal

Materials

PA66 p6g

RTI

+125°C

Pin / Blade System

Tin bronze, tin-plated solder pins or brass, tin-plated solder blades

Soldering Resistance

+350°C up to 2 seconds

Application

UI laminated core transformer applications

Benefit

Supports radial and axial wire termination for UI transformer assemblies

Technical product overview · 41 verified article entries

Article Level

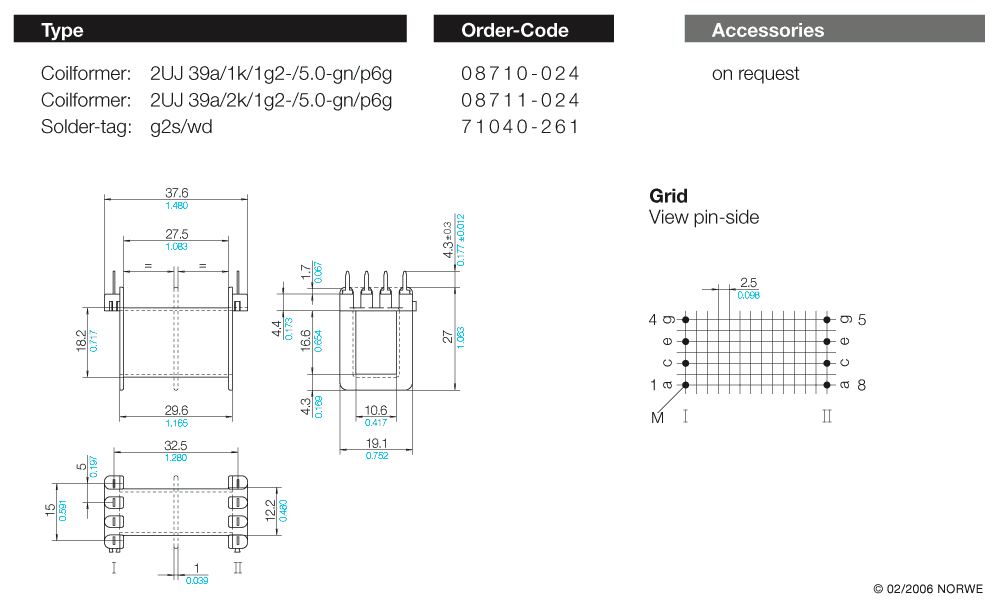

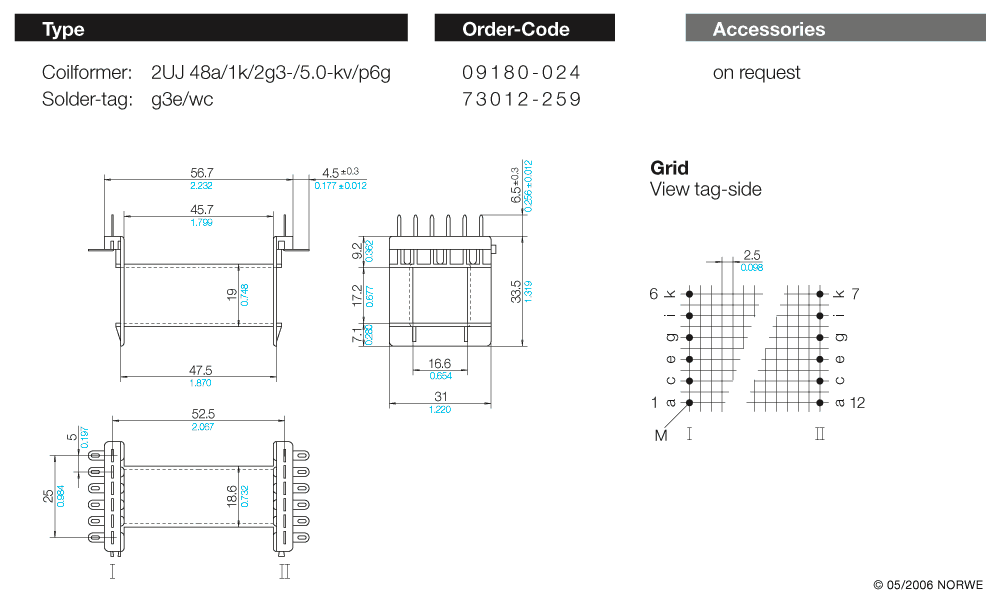

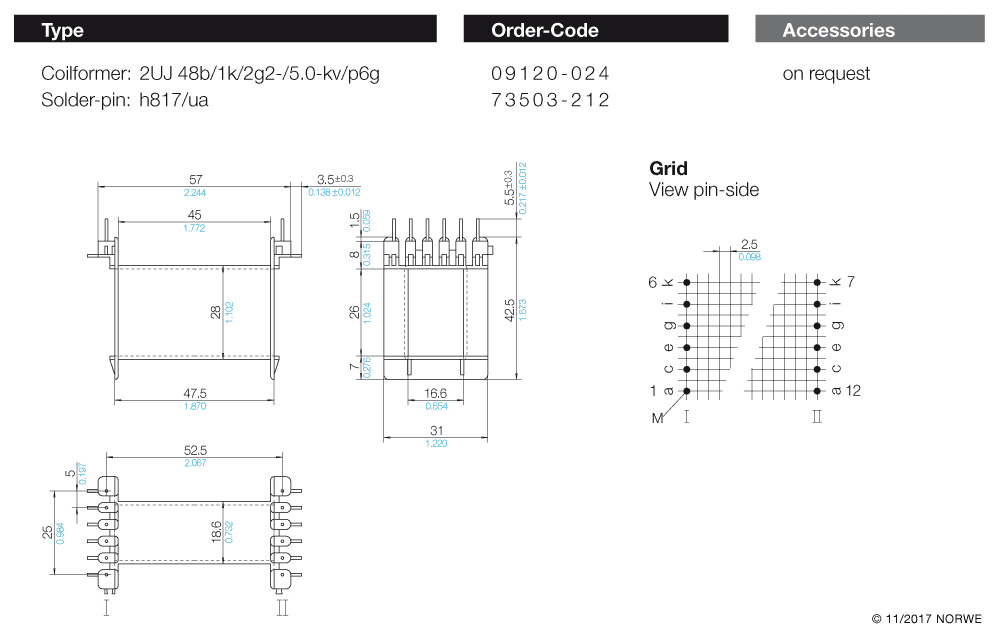

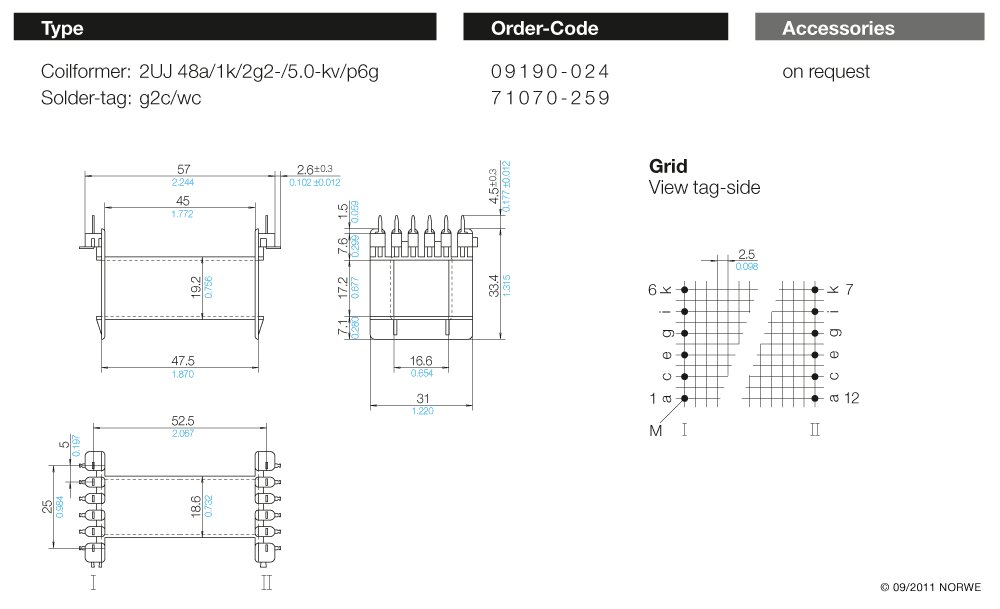

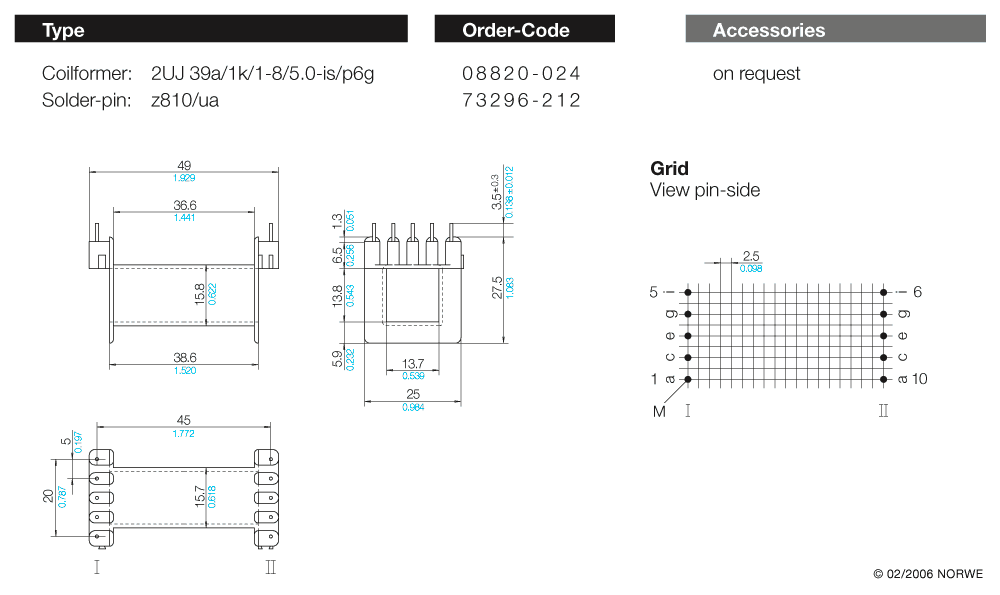

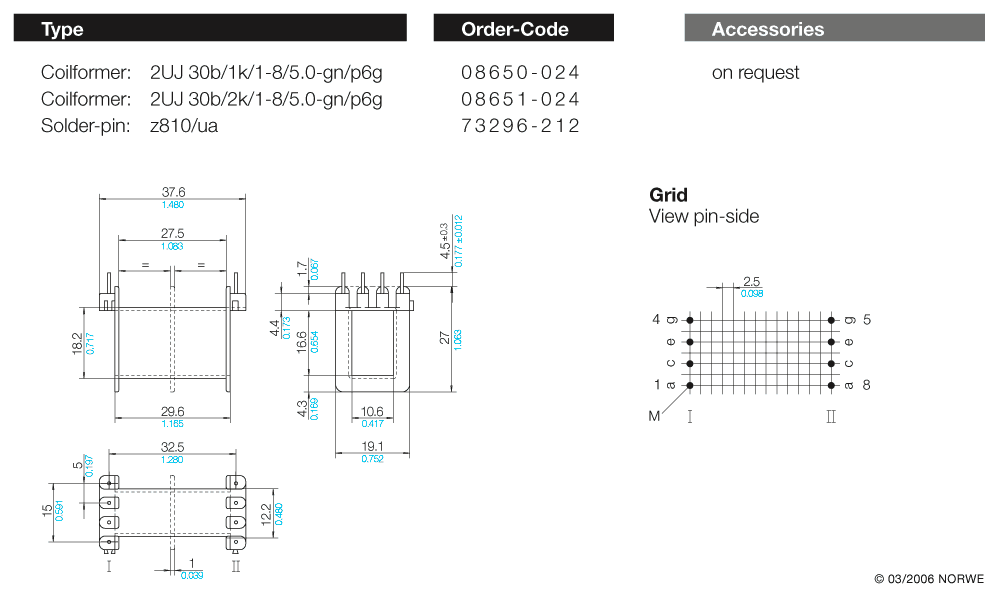

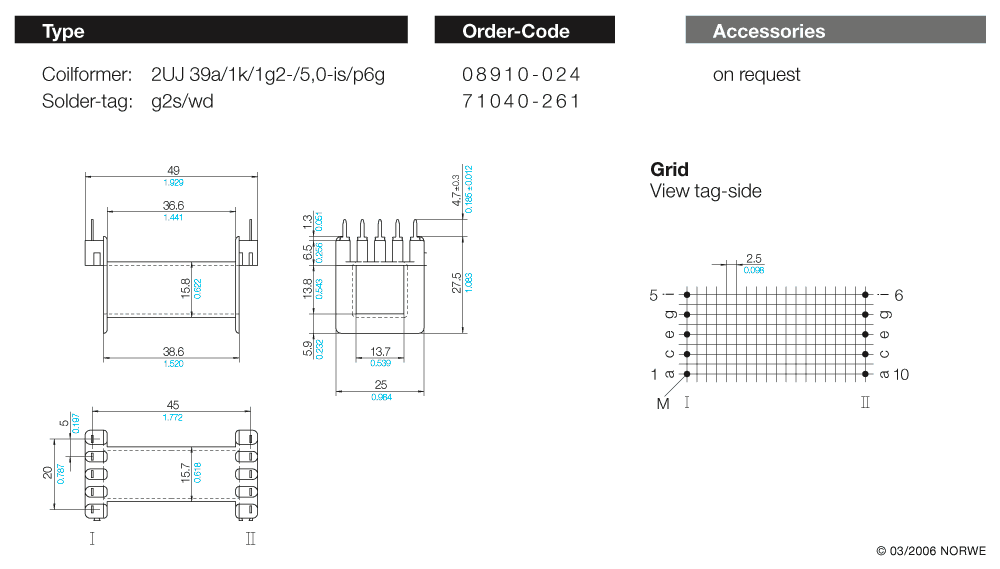

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about 2UJ 30 - 2UJ 60 Horizontal, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
