Legacy Group
016/A01
Boxes Product Group
Horizontal Potting Box HB
Housing Product Group
Legacy-conform housing product group Horizontal Potting Box HB.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Legacy Source
https://www.norwe.eu/products/de/016/A01
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

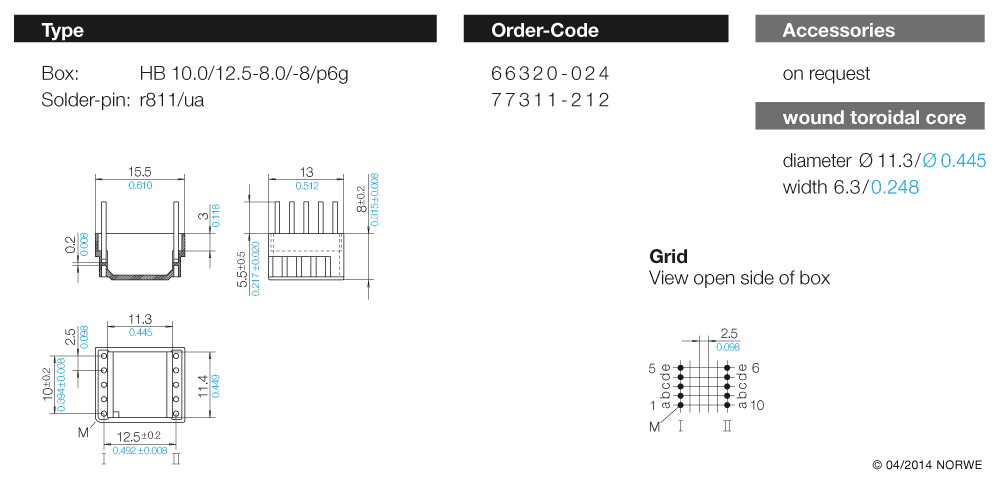

HB 10,0/12,5-8,0/-8/p6gOrder Code
66320-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

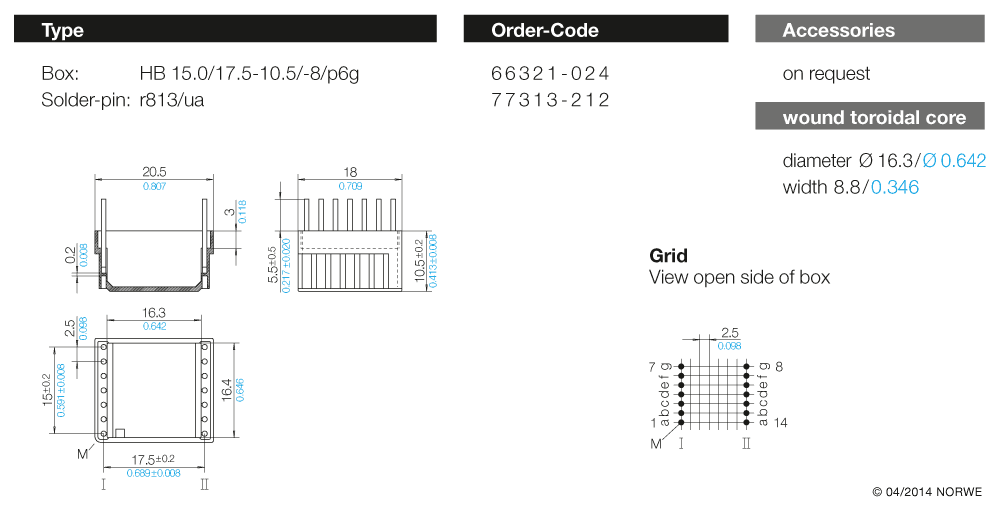

HB 15,0/17,5-10,5/-8/p6gOrder Code
66321-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

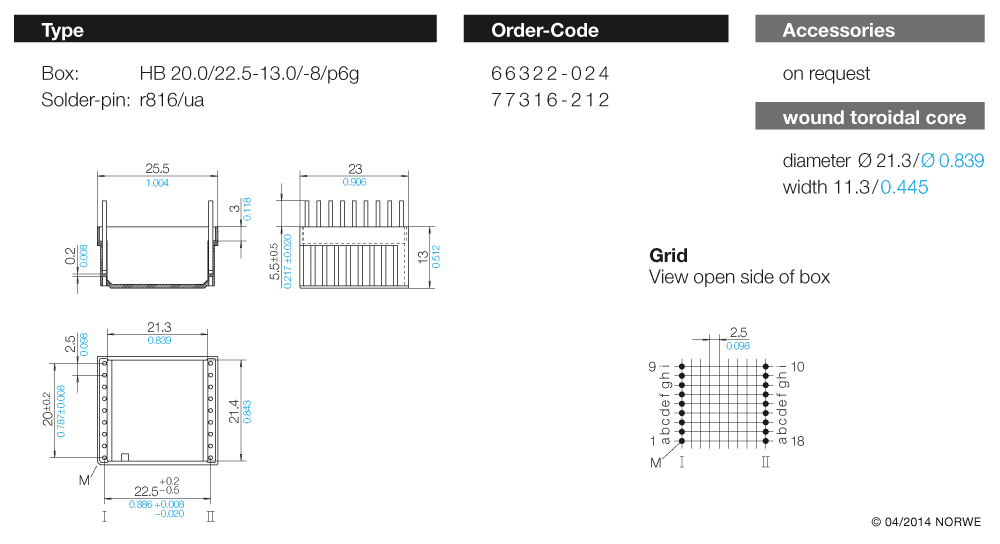

HB 20,0/22,5-13,0/-8/p6gOrder Code
66322-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

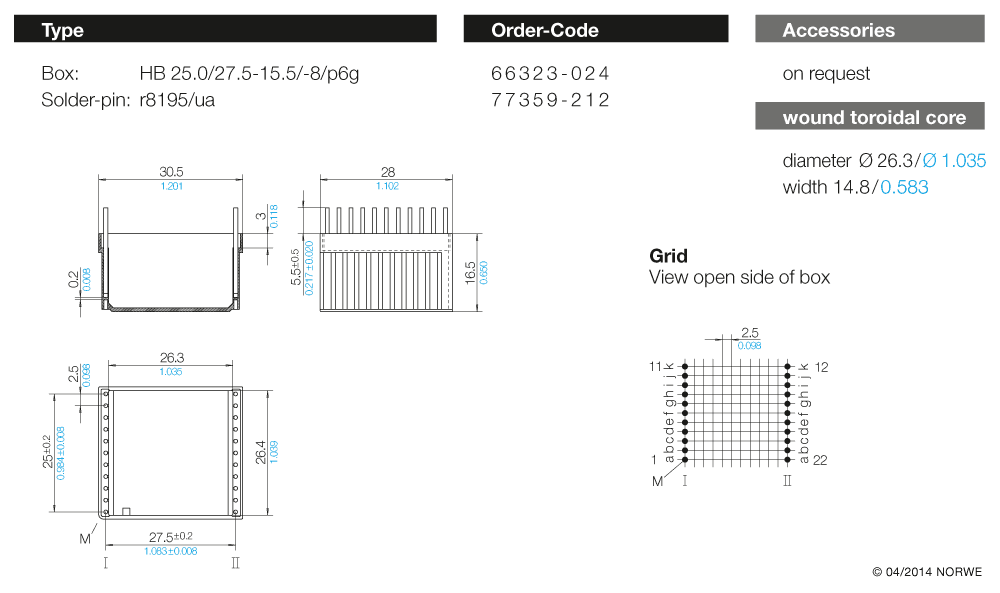

HB 25,0/27,5-15,5/-8/p6gOrder Code
66323-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

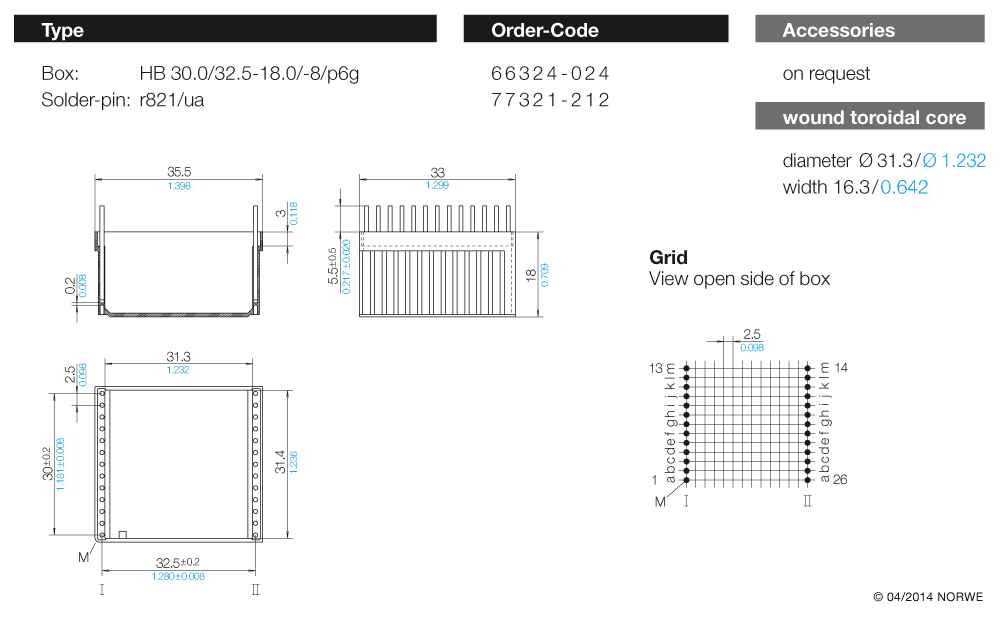

HB 30,0/32,5-18,0/-8/p6gOrder Code
66324-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

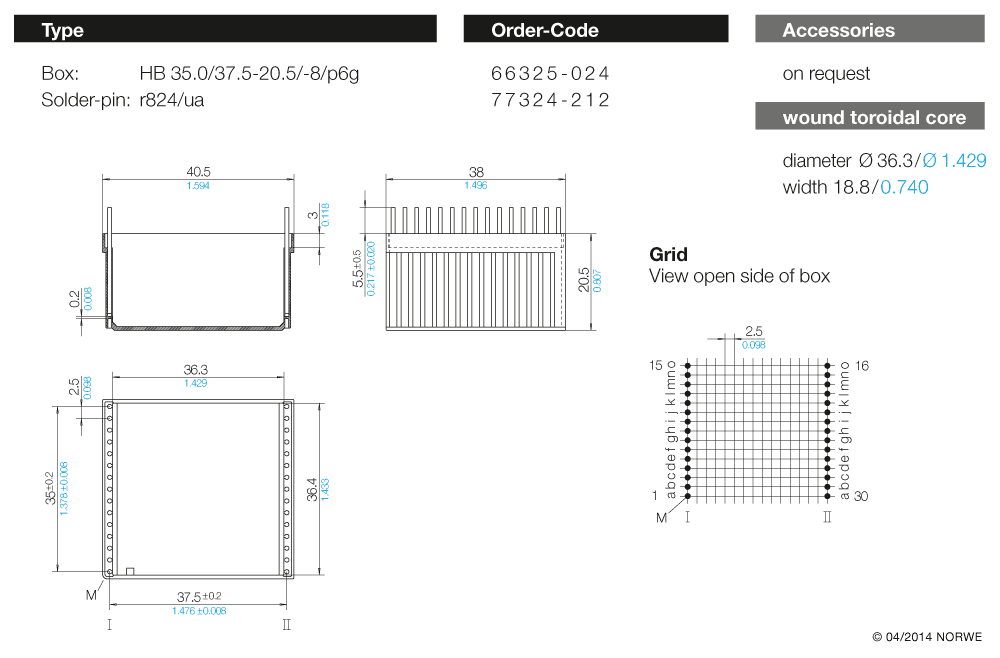

HB 35,0/37,5-20,5/-8/p6gOrder Code
66325-024Status
AvailableResources
2 downloads available
Article-level resource view
Need Support With This Product Group?
Talk to NORWE about Horizontal Potting Box HB, article selection, drawings, samples or quotation preparation.
