RM Standard Height / RM-LP Low Profile With Linear Solder Blades
RM Coil Formers With Solder Blades
RM standard-height and RM-LP low-profile coil formers with linearly arranged solder blades for radial winding and stable assembly concepts.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Connection
Linearly arranged solder blades
Materials
PET rtg natural, PA66 p6g, PA66 A3XG10
RTI
PET +155°C / PA66 +125°C / PA66 A3XG10 +115°C
Blade System
Brass, tin-plated solder blades
Soldering Resistance
+350°C up to 2 seconds
Design Feature
Tolerance compensation TA on the upper flange replaces the otherwise usual spring insulating washer
Benefit
Supports radial winding on solder blades and strain-relieved winding of thin wires and strands
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

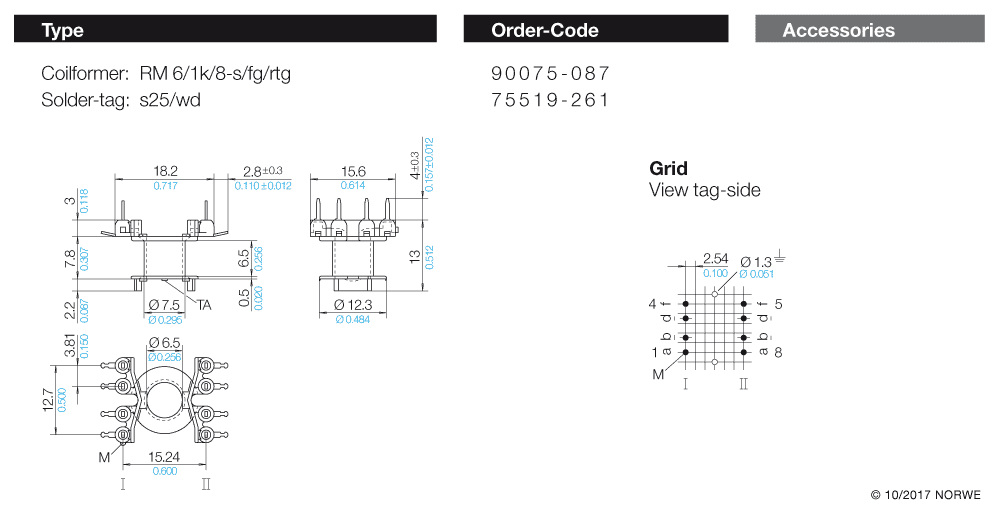

RM 6/1k/8-s/fg/rtg nat.Order Code
90075-087Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

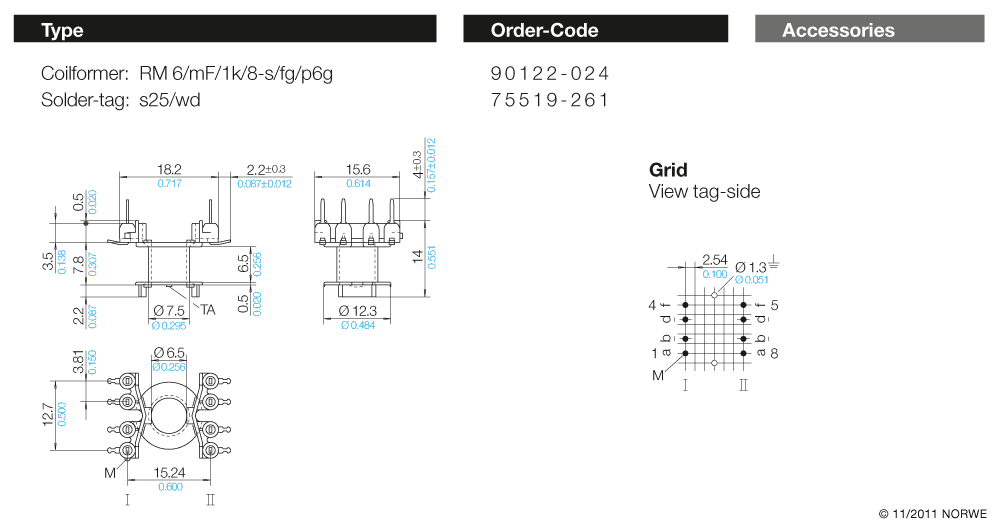

RM 6/mF/1k/8-s/fg/p6gOrder Code
90122-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

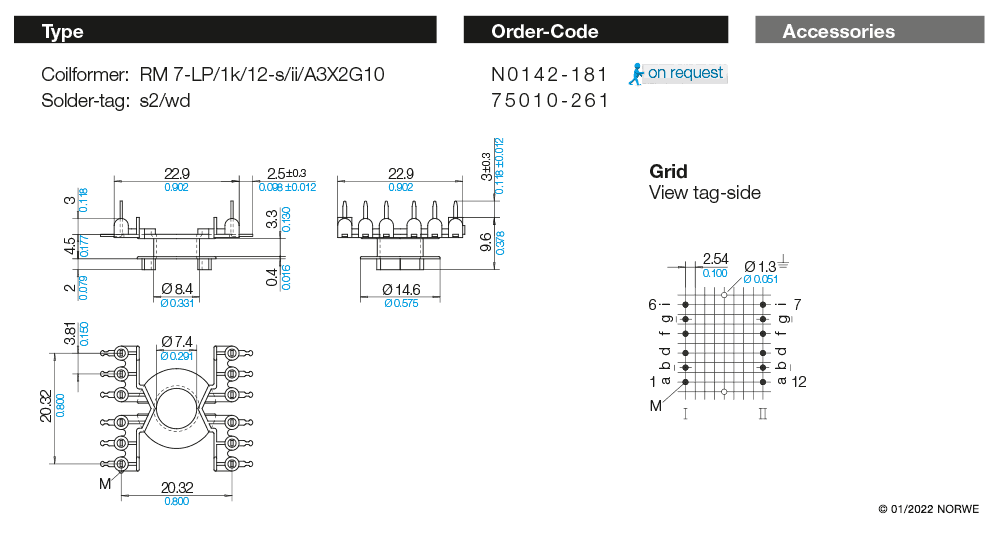

RM 7-LP/1k/12-s/ii/A3X2G10, swOrder Code
N0142-181Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

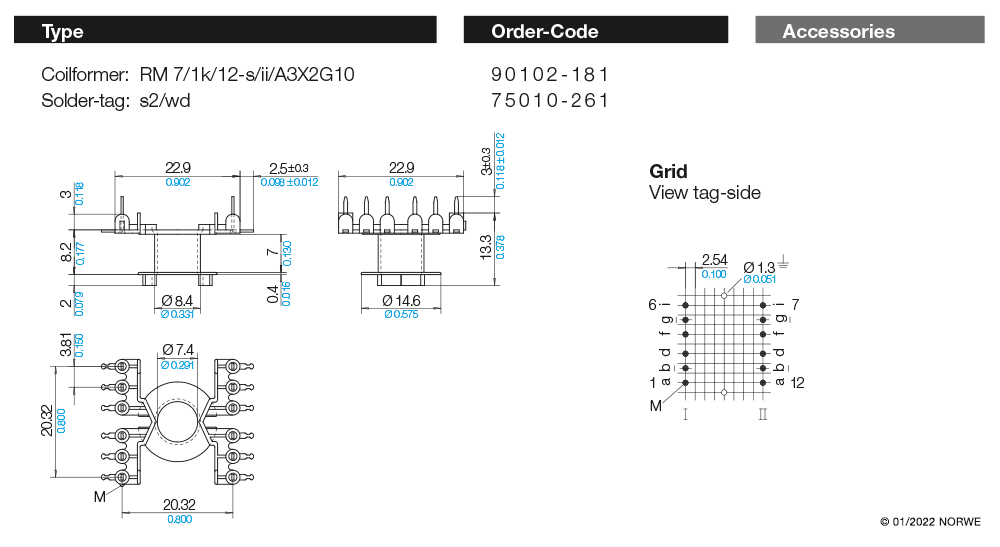

RM 7/1k/12-s/ii/A3X2G10, swOrder Code
90102-181Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

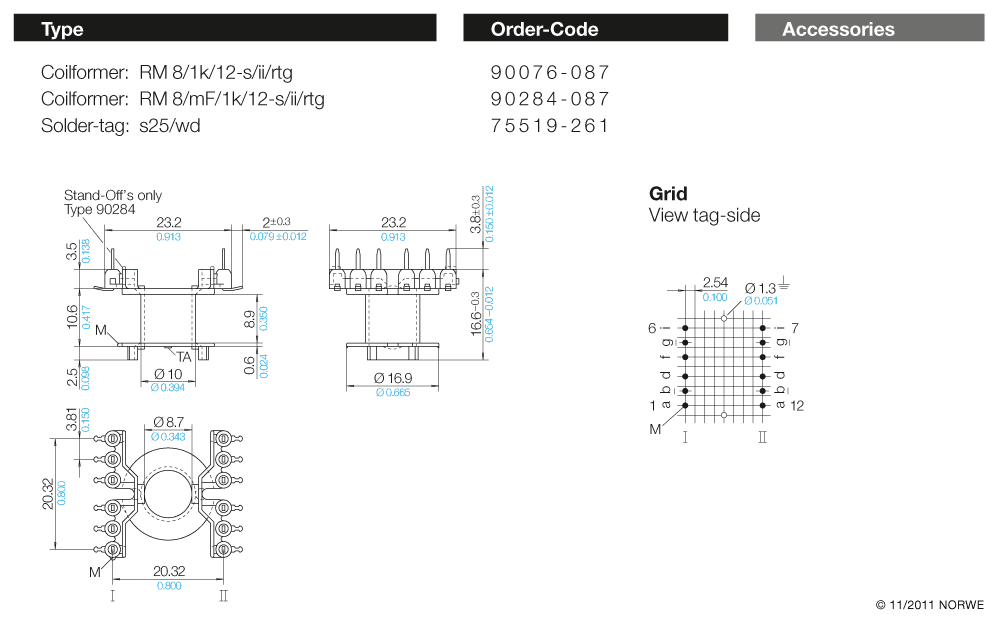

RM 8/1k/12-s/ii/rtg nat.Order Code
90076-087Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
RM 8/mF/1k/12-s/ii/rtg nat.Order Code
90284-087Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

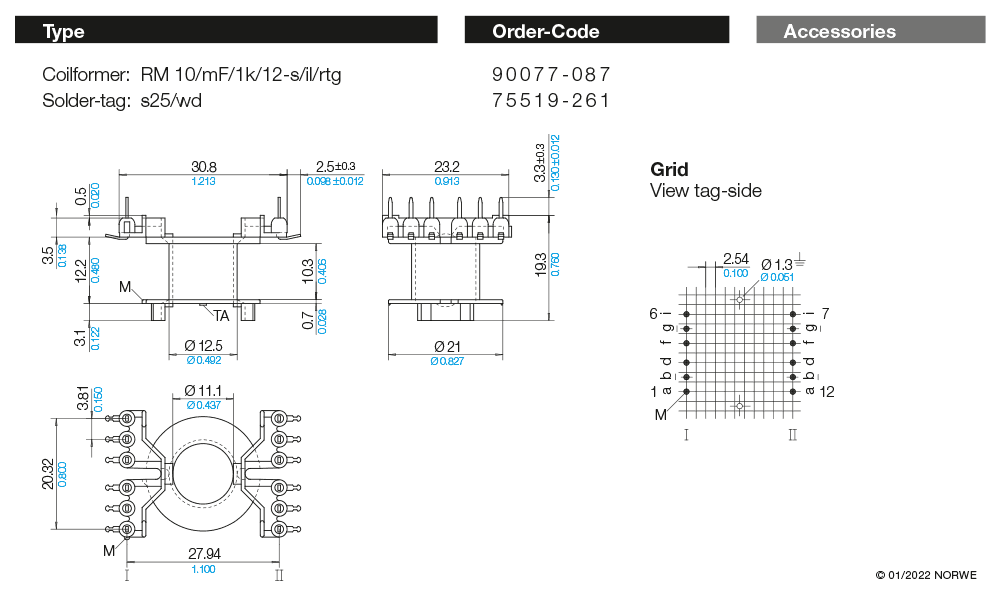

RM 10/mF/1k/12-s/il/rtg nat.Order Code
90077-087Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

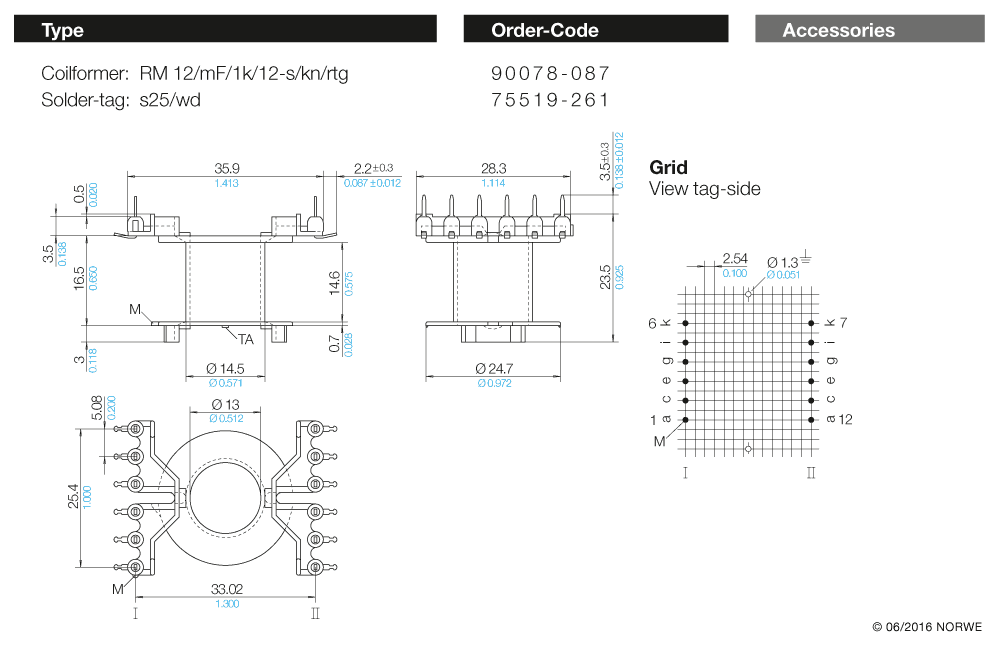

RM 12/mF/1k/12-s/kn/rtg nat.Order Code
90078-087Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

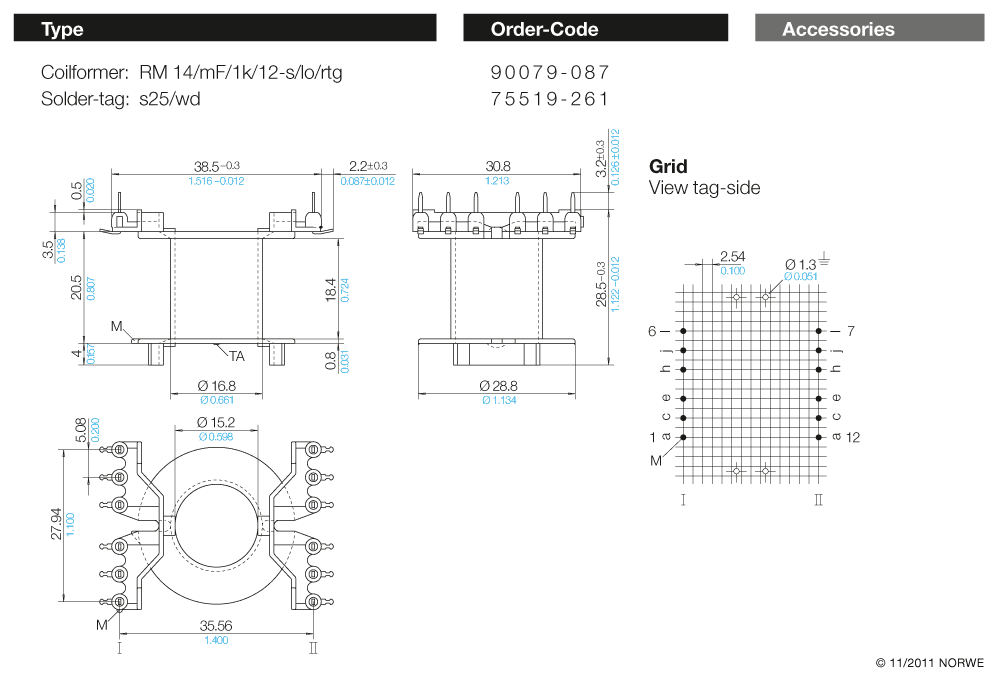

RM 14/mF/1k/12-s/lo/rtg nat.Order Code
90079-087Status
AvailableResources
2 downloads available
Article-level resource view
