RM Standard Height 45°
RM Product Group
RM Standard Height 45° With Linear Solder Blades
RM 45° Coil Formers
RM 45° coil formers with linearly arranged solder blades for demanding winding concepts and compact transformer assemblies.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Connection
Up to 3 linearly arranged solder blades per side
Materials
PBT pcg
RTI
+130°C
Blade System
Brass, tin-plated solder blades
Soldering Resistance
+350°C up to 2 seconds
Design Feature
Tolerance compensation TA on the upper flange replaces the otherwise usual spring insulating washer
Benefit
Strain-relieved winding of particularly thin wires and strands can be achieved by bending the solder blades toward the winding area
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

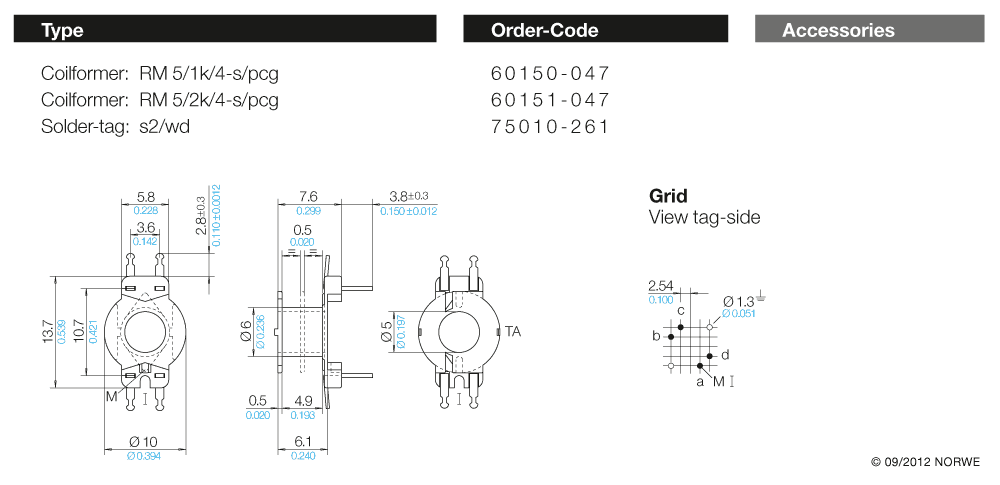

RM 5/1k/4-s/pcgOrder Code
60150-047Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
RM 5/2k/4-s/pcgOrder Code
60151-047Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

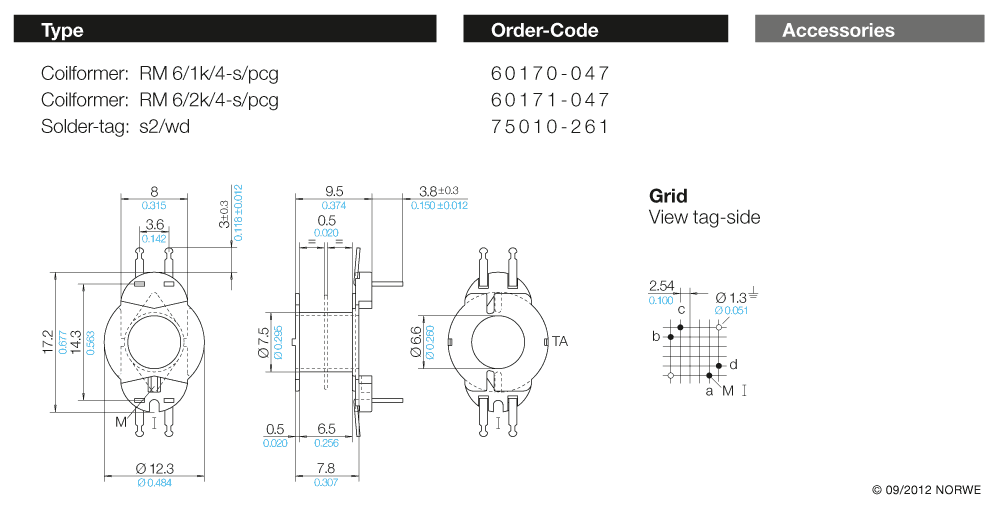

RM 6/1k/4-s/pcgOrder Code
60170-047Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
RM 6/2k/4-s/pcgOrder Code
60171-047Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

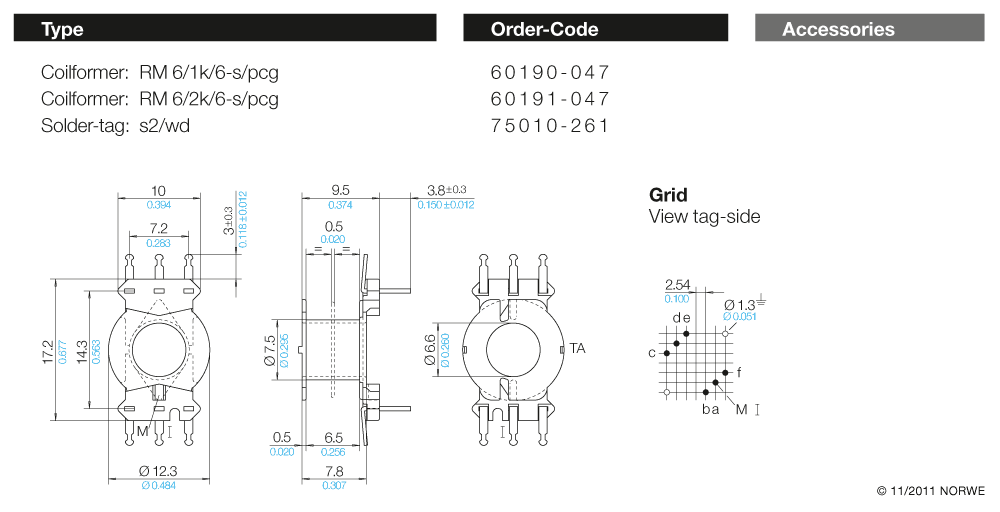

RM 6/1k/6-s/pcgOrder Code
60190-047Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
RM 6/2k/6-s/pcgOrder Code
60191-047Status
AvailableResources
2 downloads available
Article-level resource view
